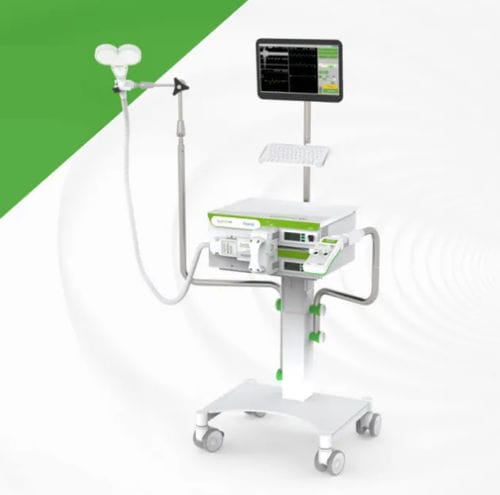

Transcranial magnetic stimulator DuoMAG® MP-Dual

∙ Single coil delivery of paired pulses (ppTMS) ∙ Two coils for interhemispheric stimulation ∙ Up to 4 Hz repetition rate, 1 Hz at maximum output of single DuoMAG MP ∙ Inter-stimulus Interval (ISI) can be in the range of 1–1000 ms ∙ Combine outputs to deliver a pulse at 134% intensity of a single DuoMAG MP System Overview The DuoMAG MP-Dual combines two DuoMAG MP units to provide fully programmable monophasic paired-pulse stimulation through a single stimulating coil. By independently controlling the pulse intervals and power level of each DuoMAG MP, it is possible to provide precise sub- and supra-threshold conditioning and test pulses. The inter-stimulus interval (ISI) of the two pulses is adjustable with the following methods: The first is via the supplied touch-screen programmable interface, and the second is via external triggering of two TTL inputs, one for each stimulator, offering complete user flexibility of the ISI setting. It is also possible to connect two individual coils for additional uses including interhemispheric stimulation. DuoMAG MP-Dual allows users to combine the two stimulator pulses into a single pulse, providing a pulse amplitude that equates to 134% of a single DuoMAG MP output. The system is ideal for both clinical and research applications. DEYMED Technological Advantages Powerful System Capable of delivering an intensive monophasic pulse with repetition rate 1Hz at 100% of single DuoMAG MP or 0.5 Hz of 134% of DuoMAG MP. Counter-balanced Coil Holder The MagTower cart features an innovative counterweight-balanced positioning arm, significantly reducing the effort required to find and secure the placement of DEYMED coils.
