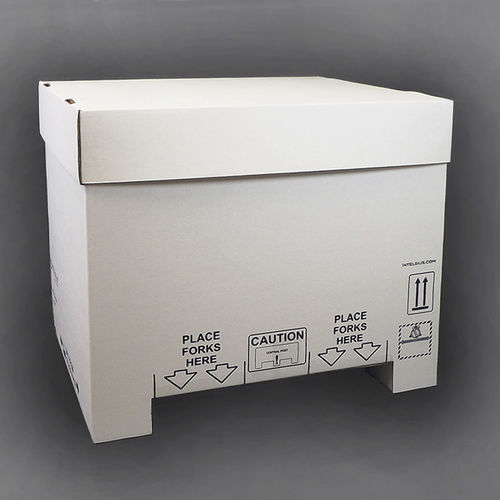

Temperature-sensitive product packaging box PHARMATHERM 230

for pharmaceutical productstransportinsulating

Product code
PHTP90S

Overview
PHARMATHERM 230 HP Summer Packout is a temperature-controlled pallet shipper designed for transporting pharmaceutical and biotech products requiring 2-8°C. Provides passive thermal protection for up to 96 hours with a payload volume of 115 liters. Internal payload space (L x W x H): 625 mm x 452 mm x 410 mm. External dimensions and system weight are optimized for palletized logistics and multi-system skid configurations.

Skid / packing details

• For 1 System On Skid:
• Skid Weight - 116 lbs.
• Skid Size - 37 in x 32 in x 52 in
• # Of Boxes On Skid - 5
• Skid Class - 250

2 Systems On Skid

• Skid Weight - 212 lbs.
• Skid Size - 48 in x 40 in x 67 in
• # Of Boxes On Skid - 10
• Skid Class - 250

Options

• Pre-Condition (Includes Pre-Assembly) - allows the Pharmachills or Biochills in your system to be pre-conditioned; includes system being pre-assembled. (+$112.50)
• Pre-Assembled System - (+3%)

Quantity discounts
Quantity | 4+
Price | $508.67

Additional notes
Please note that Pre-Assembly and Pre-Conditioning are not available for more than 1 system on a skid.

Specifications

• Brand Family: Pharmatherm
• Duration: 96 Hours
• Payload Volume: 115 Liters
• Payload Space - Length: 625 mm
• Payload Space - Width: 452 mm
• Payload Space - Height: 410 mm
• System Weight: 81 lbs.
• External Dimension - Length: 938 mm
• External Dimensions - Width: 750 mm
• External Dimensions - Height: 765 mm
• SKU / CODE: PHTP90S
• Base price (excl. tax): $552.90
