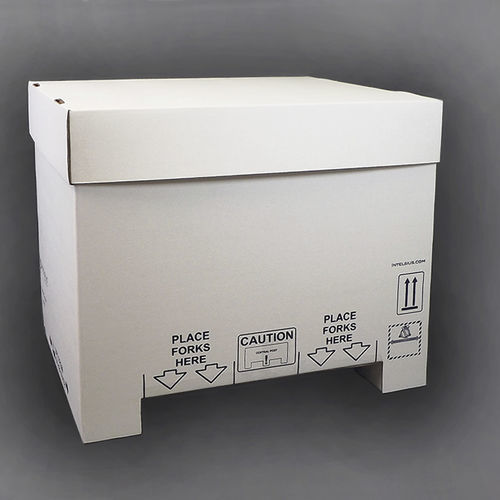

Pharmaceutical product packaging box PHARMATHERM 230

biological samplestransportfor temperature-sensitive products

Overview
PHARMATHERM 230 (PHT033) is a controlled room temperature (CRT) transport system designed to maintain 15–25°C for up to 96 hours for pharmaceutical payloads. Intended for clinical trials, vaccine logistics and biopharmaceutical shipments where CRT stability is required.

1 System On Skid

• Skid Weight - 122 lb (55.3 kg)
• Skid Size - 37 in x 32 in x 36 in (940 x 813 x 914 mm)
• # Of Boxes On Skid - 5
• Skid Class - 150

2 Systems On Skid

• Skid Weight - 260 lb (118.0 kg)
• Skid Size - 48 in x 40 in x 67 in (1219 x 1016 x 1702 mm)
• # Of Boxes On Skid - 10
• Skid Class - 250

Product Options / Notes

• Pre-Condition (Includes Pre-Assembly): option to have Pharmachills or Biochills pre-conditioned; includes system being pre-assembled.
• Pre-Assembled System: available as an option for faster deployment.

Technical specifications

• Brand Family: PHARMATHERM
• Duration: 96 Hours
• Payload Volume: 146 Liters
• Payload Space - Length: 681 mm
• Payload Space - Width: 511 mm
• Payload Space - Height: 420 mm
• System Weight: 104.7 lb (47.5 kg)
• External Dimension - Length: 938 mm
• External Dimensions - Width: 750 mm
• External Dimensions - Height: 765 mm
• Product Code: PHT033
