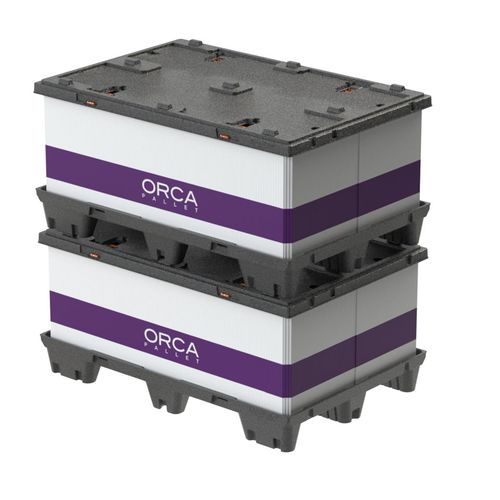

Transport container ORCA Pallet

for biological samplesmicrobiologytemperature-controlled

Overview

ORCA Pallet is a collapsible pallet-scale temperature-controlled shipper designed for cost-effective, reusable transport of large-volume pharmaceutical and biopharmaceutical payloads. It combines vacuum insulated panels (VIP) and advanced phase change materials (PCM) to provide extended passive temperature control and is offered as a multi-use system.

Key benefits

• Passive temperature-controlled packaging suitable for pallet shipments
• Fully collapsible design for compact storage and reduced logistics costs
• Multi-use system for repeated distribution cycles
• Minimum 96 hours of validated performance against ISTA-7D profiles
• Compatible with a variety of data loggers

Sizes & temperature ranges

• Available in three sizes: 100 L (Half Euro 800 x 600 mm), 255 L (Euro 800 x 1200 mm), 345 L (US Pallet 1200 x 1000 mm)
• Temperature ranges available: +2°C to +8°C; +15°C to +25°C; -25°C to -15°C; Dry Ice for ultra-low temperatures

Technology

The ORCA Pallet range pairs vacuum insulated panels (VIP) with advanced phase change materials (PCM) to extend passive cold life while maintaining a pallet-scale payload capacity. The structural design supports pallet handling and allows the system to collapse for efficient return and storage.

Use cases

• Large-volume pharmaceutical and biopharmaceutical shipments
• Clinical trials, bulk vaccine and biologic distribution requiring strict temperature control

Technical specifications

• Model: ORCA Pallet
• Capacities: 100 L, 255 L, 345 L
• Footprints: 100 L = Half Euro (800 x 600 mm); 255 L = Euro (800 x 1200 mm); 345 L = US Pallet (1200 x 1000 mm)
• Temperature ranges: +2°C to +8°C; +15°C to +25°C; -25°C to -15°C; Dry Ice (for ultra-low)
• Performance: Minimum 96 hours (validated against ISTA-7D profiles)
• Insulation: Vacuum Insulated Panels (VIP) + Phase Change Materials (PCM)
• System type: Multi-use, collapsible pallet shipper
• Logger compatibility: Compatible with various data loggers
