Pharmaceutical product packaging box ORCA Pallet 100L

biological productstransportreusable

Product description

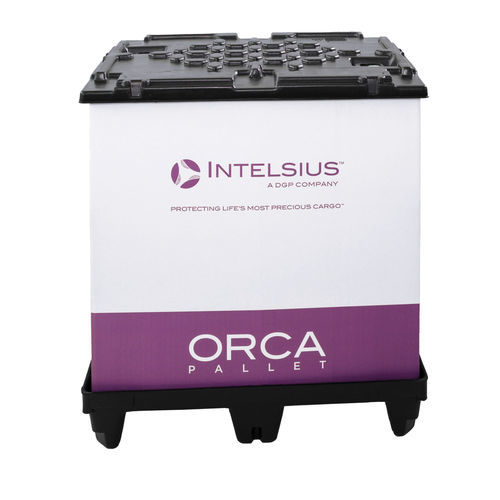

ORCA Pallet is a foldable, reusable insulated pallet-size shipper designed to provide a cost-efficient and sustainable solution for transporting large volumes of pharmaceutical products. The system is qualified to ISTA 7D temperature profiles and combines vacuum insulated panels (VIP) with phase change material (PCM). The foldable construction enables rapid collapse and reassembly for space-saving storage and multiple reuse cycles.

Key features

• Rigid outer pallet with secure lid
• Delivered with multiple payload cartons for efficient loading
• Thermal protection exceeding 120 hours (depending on configuration)
• Folded footprint reduced by up to 25% to lower storage and transport costs
• Quick assembly and disassembly without special tools
• Reusable and refurbishable packaging solution
• Available for rental and purchase

Technical characteristics / specifications

• Capacity / model: ORCA Pallet 100L
• Qualification: ISTA 7D temperature profiles
• Insulation: vacuum insulated panels (VIP) combined with phase change material (PCM)
• Thermal protection: over 120 hours (depending on configuration and operating conditions)
• Foldable design: up to 25% reduced size when collapsed
• Outer dimensions: 810 x 610 x 880 mm
• Inner dimensions: 568 x 360 x 486 mm
• Available temperature ranges/variants: 15°C–25°C, 2°C–8°C, -15°C–-25°C (preconditioned and non-preconditioned options)
• Available SKUs / variant codes: OPAL111, OPAL111PREP, OPAL112, OPAL112PREP, OPAL113, OPAL113PREP
• Intended use: transport of large volumes of pharmaceutical goods; reusable pallet packaging solutions
