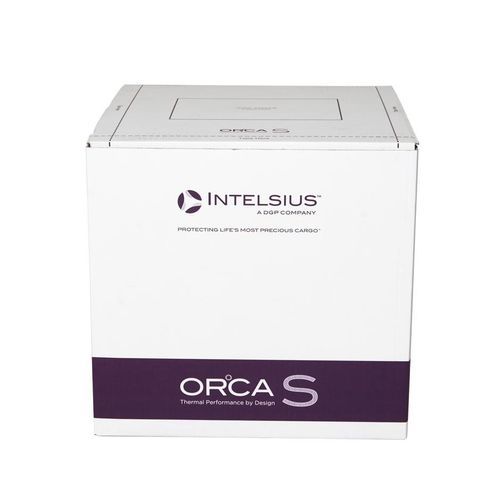

Pharmaceutical product packaging box ORCA S 11L

transportpapertemperature-controlled

Overview
ORCA Single-Use 11L (SKU: ORCS11L) is a single-use passive temperature-controlled packaging solution for shipping temperature-sensitive, high-value payloads. It supports commonly used controlled temperature ranges and is available with options for pre-conditioning and data logger integration.

Key features and configurations

• Single-use, passive thermal packaging using vacuum insulated panel/PCM technology
• Intended for temperature-sensitive payloads with limited reuse requirements
• Payload volume: 11.1 L
• Payload internal dimensions: 225 mm x 225 mm x 220 mm
• External dimensions: 385 mm x 380 mm x 365 mm
• Packaged mass: ~10.0 kg
• Typical hold time: 96 Hours (depending on configuration and ambient conditions)
• Supported temperature ranges: 15°C–25°C and 2°C–8°C
• Options: pre-conditioned (yes/no); logger integration (yes/no)
• Shipping configurations: single unit; full pallet (24 single units)

Available variants (examples)

• Single unit (no logger, not pre-conditioned): GBP 168.60
• Single unit (pre-conditioned, no logger): GBP 196.00
• Single unit (no pre-conditioning, with logger): GBP 237.60
• Single unit (pre-conditioned, with logger): GBP 265.00
• Full pallet (24 single units): GBP 4,046.40

Product identifiers

• Main SKU: ORCS11L
• Example variation SKUs: OSU223 (single unit), PREPOSU223 (pre-conditioned)
• Logger identifier example: SLOG001 (used in combined SKUs)

Technical specifications

• Commercial name: ORCA Single-Use
• Payload volume: 11.1 L
• Payload internal dimensions: 225 mm x 225 mm x 220 mm
• External dimensions: 385 mm x 380 mm x 365 mm
• Packaged mass: 10.0 kg (typical)
• Hold time / duration: 96 hours (typical, dependent on ambient and configuration)
• Temperature ranges supported: 15°C–25°C and 2°C–8°C
• Configurations: single unit; full pallet (24 single units)
• Options: Pre-conditioned; Logger integration
