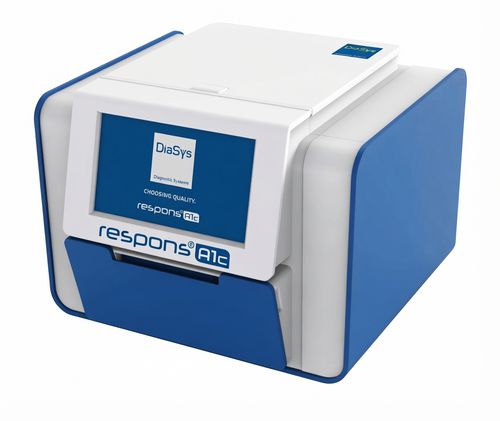

Automatic glycated hemoglobin analyzer respons®A1c

for diabetescompactcapillary blood

Product overview
respons®A1c is a compact analyzer for rapid determination of HbA1c from capillary blood using boronate affinity chromatography. The system employs pre-calibrated unit-dose cartridges (reagent pack with integrated capillary and cassette) packaged in aluminium pouches for single-test, one-step operation.

Convenient testing

• Sample volume: 3.5 µL capillary blood collected via the reagent pack's integrated capillary.
• Workflow: insert pre-calibrated cassette into analyzer, collect capillary blood with reagent pack, insert pack and close lid.
• Time to result: 4 minutes 30 seconds.
• Unit-dose cartridge format (reagent pack + cassette) enables single-test handling and pre-calibrated measurement.

Performance data (HbA1c test)
Test method: Boronate affinity chromatography
Cartridge: Pre-calibrated unit-dose system
Measuring range: 4.0 – 15.0% DCCT (9 – 140 mmol/mol IFCC)
Hematocrit range: 22.5 – 60%
Test time: 4 minutes 30 seconds
Precision (within series) (20 days, two analyzers, three lots): 2.6% at 5.4% DCCT, 1.9% at 9.0% DCCT
Sample volume: 3.5 µL
Shelf life: 18 months from date of production
Storage conditions (test kits): 2 – 30°C

Instrument features & operation

• User interface: 4.3" colour touchscreen with voice guidance during test.
• Test memory: 400 results stored.
• Printer: integrated thermal printer.
• Operating conditions: 17 – 37°C; 15 – 75% RH.
• Storage conditions (instrument): 10 – 60°C; 15 – 75% RH.
• Connectivity: 1 × USB-A, 1 × USB-B, 1 × Ethernet.
• Weight: 1.6 kg.
• Dimensions: 205 (W) × 200 (L) × 150 (H) mm.
• Power supply: 100/240 VAC; output 12 V DC, 3.33 A.

Order information

• Cat. No. 963100 — respons®A1c analyzer
• Cat. No. 963207 — respons®A1c Hemoglobin A1c Test Kit, 10 tests

Technical specifications

• Method: Boronate affinity chromatography
• Measuring range: 4.0 – 15.0% DCCT (9 – 140 mmol/mol IFCC)
• Hematocrit range: 22.5 – 60%
• Sample volume: 3.5 µL
• Time to result: 4 min 30 s
• Precision: 2.6% at 5.4% DCCT; 1.9% at 9.0% DCCT
• Display: 4.3" coloured touchscreen with voice guidance
• Memory: 400 results
• Integrated thermal printer
• Connectivity: USB-A, USB-B, Ethernet
• Weight: 1.6 kg; Dimensions: 205 × 200 × 150 mm
• Power: 100/240 VAC → 12 V DC, 3.33 A
