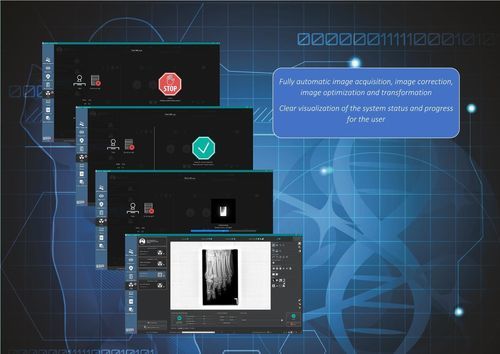

DigipaX X-ray image acquisition software for retrofitting
DigipaX X-ray image acquisition software is a professional solution for the straightforward
digitization of existing X-ray systems. A flat panel is retrofitted with the necessary
control software. Together with the integrated PACS functions, existing analog
X-ray systems can be converted to digital image processing in a technically correct and economical manner.
The software operates completely independently of the X-ray generator. There is no direct connection
between the generator and the software – existing system structures therefore remain unchanged.

System concept

• Up to 3 flat panels can be connected
• Autonomous operation of the X-ray generator (manual parameter setting)
• Manual transfer of the actual X-ray parameters used back to the software
• Fully automatic image acquisition from the panel
• Manually selectable filters
• Freely expandable organ tables (multiple tables possible)
• Integrated dose indicator
• Dose area product (DAP) display when measuring device is installed
• Expandable patient database
• Powerful image viewer for post-processing and diagnosis
• Network-compatible (workstations in the network can create X-ray orders)
• Storage of orders on a central worklist server
• Connection to external worklist servers possible
• Full range of functions of the PACS main module available

Advantages of retrofitting

• Cost-effective digitization of existing systems
• No intervention in generator control required
• Quick integration into existing practice or clinic networks
• Future-proof, expandable system architecture
• Optimized workflows through digital workflows

Optional extensions

• Grid line suppression
• Autocropping
• DICOM send to various archives
• Stitching function (long format images)Advantages of retrofitting
• Cost-effective digitization of existing systems
• No intervention in generator control required
• Quick integration into existing practice or clinic networks
• Future-proof, expandable system architecture
• Optimized workflows through digital workflows
