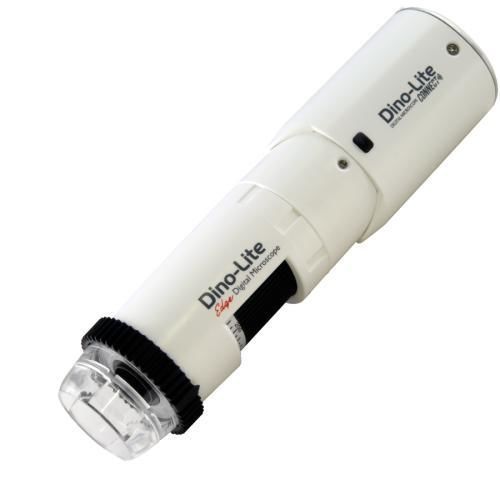

Digital trichoscope MEDLW4HM

computer-basedcamera-basedwith Wi-Fi connection

Product description
The Dino-Lite TrichoScope Wireless (MEDLW4HM) is a digital trichoscope designed for clinical examination of the human scalp and for hair analysis, for example in hair loss research. With magnification up to 200x individual hairs and scalp structures can be inspected in detail. The integrated linear polarizer reduces surface glare from skin and hair.

Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: Yes, linear

Optics
Magnification: 10-70x, 200x
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Wifi: Yes

Housing
Housing material: Composite/plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 95 g
Cable length: 1.8 m

Features
Special feature: No
Measurement: No
Calibration: No
Microtouch sensor: Yes

Information
Package contents: Microscope, carry pouch, software CD, N3C-O - Open cap, N3C-C - Closed cap, N3C-D - Diffuser cap, N3C-E - Extension cap, N3C-L - Long cap, N3C-S - Side light cap, user manual
Warranty information: 2 years European warranty
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range: €800,00 - €1000,00

Technical specifications

• Product type: TrichoScope for scalp and hair analysis
• Model: TrichoScope Wireless (MEDLW4HM)
• Brand: Dino-Lite
• Magnification range: 10-70x and up to 200x
• Polarizer: Integrated linear polarizer to reduce glare
• Illumination: 8 white LEDs, switchable
• Sensor: 1.3 MP CMOS, 1280x1024 resolution, up to 30 fps
• Connectivity: USB 2.0 and WiFi
• Supported OS/software: Windows (DinoCapture 2.0) and MacOS (DinoXcope)
• Lens: Glass with anti-reflection coating
• Physical: 10.5 cm x 3.2 cm, 95 g
• Package includes: multiple caps (open, closed, diffuser, extension, long, side light), carry pouch and software CD
• Warranty: 2 years (Europe)
• Regulatory: Medical Device Class 1 (MDR EU 2017/745)
