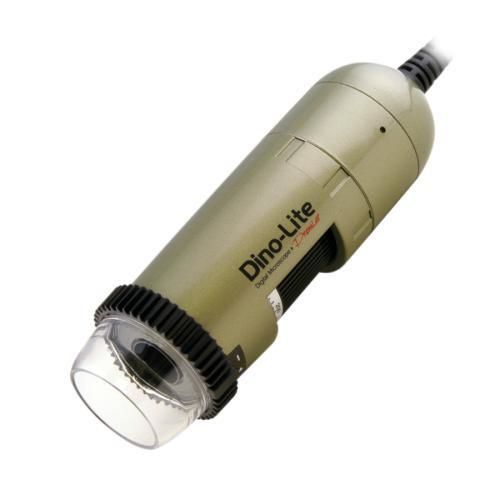

Digital trichoscope MEDL4HM

camera-basedcomputer-basedwith USB connection

Description
The Dino-Lite TrichoScope Polarizer (MEDL4HM) is a digital trichoscope designed for clinical examination of the human scalp and detailed hair analysis, suitable for dermatology and hair‑loss research. With variable magnification (10–70× and up to 200×) it enables inspection of individual hairs and scalp microstructures. The built‑in linear polarizer reduces surface glare from skin and hair for clearer visualization.

Specification
Lighting
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: Yes, linear

Optics
Magnification: 10-70x, 200x
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11; macOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Housing
Housing material: Composite/plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 95 g
Cable length: 1.8 m

Features
Special feature: No
Measurement: No
Calibration: No
Microtouch sensor: Yes

Information
Package contents: Microscope, carry pouch, software CD, ZT-Z-CC1 cap closure, user manual
Warranty information: 2 years European warranty
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range: €400,00 - €600,00

Technical specifications

• Product code: MEDL4HM
• Model name: TrichoScope Polarizer
• Magnification: 10-70x; up to 200x
• Sensor: 1.3 MP CMOS, 1280x1024
• Frame rate: 30 fps
• Lighting: 8 white LEDs, switchable
• Polarizer: linear, built-in
• Interface: USB 2.0
• OS compatibility: Windows 7/8/10/11, macOS 10.9+
• Housing: Composite/plastic
• Dimensions: 10.5 cm x 3.2 cm
• Weight: 95 g
• Cable length: 1.8 m
• Package includes: carry pouch, software CD, cap closure, user manual
