Flexible instrument holding arm RK-10A

Product description

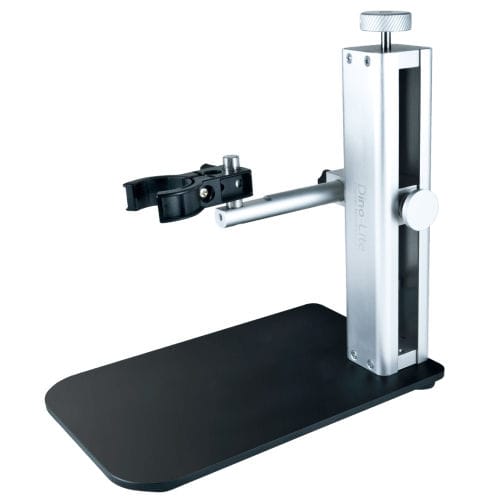

The Dino-Lite RK-10A is a microscope stand compatible with all professional Dino-Lite models. Constructed from stainless steel and aluminum, it provides precise fine-focus adjustment and a quick-release function for fast vertical movement. The fine-focus knob improves control at high magnification, and an adjustable safety stop prevents the microscope from contacting the specimen. The adjustable horizontal arm offers a 15 cm range with 360-degree rotation; the additional arm (RK-10-EX included) extends the effective reach for larger objects. The RK-10A is designed for precise orientation and positioning to support productivity and ease of use in industrial, scientific and laboratory environments.

Available extensions

• RK-10-EX — Additional horizontal arm (included with RK-10A)
• RK-10-FX — Flexible arm extension
• RK-10-VX — Vertical arm extension
• RK-10-PX2 — X and Y positioning arm

Caractéristiques / spécifications techniques

• Compatibility: Compatible with all Dino-Lite models
• Housing - Dimensions: 15 cm (W) x 22 cm (L) x 23 cm (H)
• Housing - Weight: 1.10 kg
• Features: ESD safe — Yes
• Package contents: Stand, HD-P1 holder, RK-10-EX horizontal arm
• Warranty information: 2 years European warranty
• Accessory range: Professional stands
• Price range: €300.00 - €450.00
