Complete set mounting system RK-10F / RK-10FS

Product overview

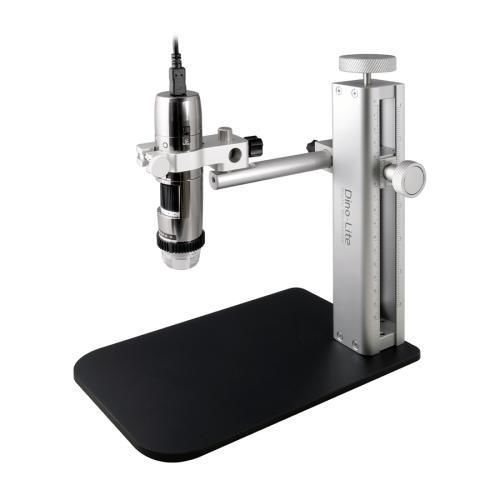

The RK-10F is an upgraded focus stand derived from the RK-10, equipped with an improved quick-release button incorporating an anti-backlash mechanism for more precise focus adjustments and smoother feel. The RK-10FS version adds a heavier antistatic baseplate to better suppress external vibrations and improve stability during high-magnification inspections.

Key features

• Anti-backlash quick-release mechanism for precise focus control
• RK-10FS: heavier antistatic baseplate to reduce vibration transmission
• ESD-safe construction for use in electrostatic-sensitive environments
• Compact dimensions suitable for bench-top inspection setups
• Compatible with a range of positioning and extension arms

Available extensions

• RK-10-EX – Additional horizontal arm (included with RK-10A)
• RK-10-FX – Flexible arm extension
• RK-10-VX – Vertical arm extension
• RK-10-PX2 – X and Y positioning arm

Technical specifications

• Dimensions: 226 mm (H) x 150 mm (D) x 220 mm (L)
• Weight: Approx. 1050 g (RK-10F); Approx. 1900 g (RK-10FS)
• ESD safe: Yes
• Product code: RK-10F / RK-10FS
• Price range: €300 - €450

Package contents & warranty

• Included: Stand, HD-P1 holder, RK-10-EX horizontal arm
• Warranty: 2 years European warranty

Recommended applications

• High-magnification visual inspection
• Electronics assembly and PCB inspection
• Laboratory and quality-control benches
