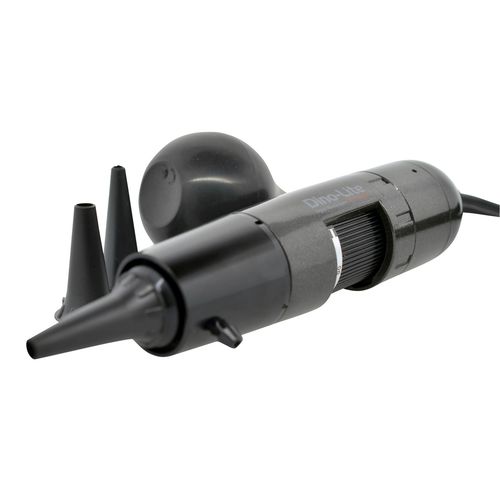

Video otoscope with speculum MEDL4EP

with USB connection

Description
The EarScope Pneumatic (MEDL4EP) is a compact pneumatic otoscope for clinical examination of the external ear and tympanic membrane. It combines a 1.3 megapixel sensor with 55–90× optical magnification and a rubber bulb to deliver pneumatic testing of tympanic mobility. Supplied with disposable specula (2.5 mm and 4 mm, 10 each), a carry pouch and software for image capture.

Lighting
Light / LED type: White
Number of LEDs: 6
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: No

Optics
Magnification: 55–90×
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Housing
Housing material: Composite / plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (Ø)
Weight: 95 g
Cable length: 1.8 m

Features
Microtouch sensor: Yes
Measurement: No
Calibration: No
Special feature: Pneumatic testing via rubber bulb (included)

Information
Package contents: Otoscope, carry pouch, 10× 2.5 mm disposable specula, 10× 4 mm disposable specula, software CD, user manual, rubber bulb
Warranty information: 2 years European warranty
Regulatory approval: Medical Device Class 1 – MDR (EU) 2017/745
Price range: €600.00 - €800.00

Technical specifications

• Model: EarScope Pneumatic
• Product code: MEDL4EP
• Magnification: 55–90×
• Resolution: 1.3 Megapixel (1280x1024)
• Lens: Glass with anti-reflection coating
• Lighting: 6 white LEDs, switchable; IR cut-filter >650 nm
• Sensor: CMOS, up to 30 fps
• Interface: USB 2.0
• Compatibility: Windows 7/8/10/11; MacOS 10.9+
• Dimensions: 10.5 cm (L) x 3.2 cm (Ø)
• Weight: 95 g
• Cable length: 1.8 m
• Package contents: Otoscope, carry pouch, disposable specula (2.5 mm & 4 mm x10 each), software CD, user manual, rubber bulb
• Warranty: 2 years (Europe)
• Regulatory: Medical Device Class 1 (MDR (EU) 2017/745)
• Price range: €600.00 - €800.00
