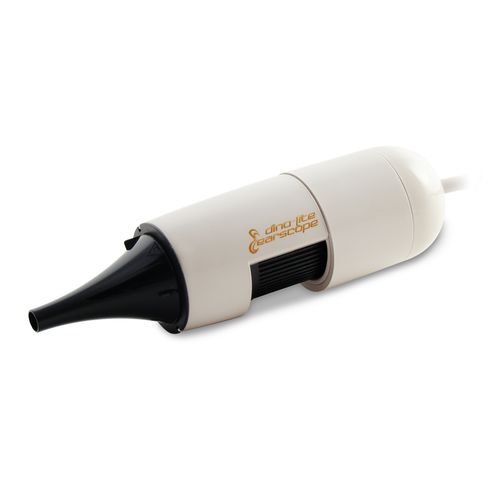

Pediatric video otoscope MEDL3E

with speculumwith USB connection

Product description
The Video otoscope for ear examination EarScope Basic (MEDL3E) is a compact, USB-powered imaging device designed for clinical inspection of the external auditory canal and tympanic membrane. The detachable cap enables hygienic use with disposable specula. The device provides VGA resolution (640x480) and optical magnification of 20–30x. Supplied with disposable specula 3 mm, 4 mm and 5 mm (10 each).

Lighting
Light / LED type: White
Number of LEDs: 4
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: No
Polarizer: No

Optics
Magnification: 20–30x
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: VGA (640x480)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC

Housing
Housing material: Composite/plastic
Magnification lock: No
Dimensions: 10.5 cm (L) x 3.2 cm (Ø)
Weight: 95 g
Cable length: 1.8 m

Features
Measurement: No
Calibration: No
Microtouch sensor: No

Information
Package contents:

• EarScope Basic (MEDL3E) video otoscope
• Carry pouch
• Disposable specula: 10 × 3 mm, 10 × 4 mm, 10 × 5 mm
• Software CD
• User manual

Warranty information: 2 years European warranty
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range (indicative): €200,00 - €300,00

Technical specifications

• Model: EarScope Basic
• Product code: MEDL3E
• Magnification: 20–30x
• Sensor resolution: VGA (640x480)
• Sensor type: CMOS
• Maximum frame rate: 30 fps
• Illumination: 4 white LEDs, switchable
• Infrared filter: IR cut-filter >650 nm
• Lens: Glass with anti-reflection coating
• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7/8/10/11, MacOS 10.9+
• Housing material: Composite/plastic
• Dimensions: 10.5 cm (L) x 3.2 cm (Ø)
• Weight: 95 g
• Cable length: 1.8 m
• Package contents: Video otoscope, carry pouch, disposable specula (10 × 3 mm, 10 × 4 mm, 10 × 5 mm), software CD, user manual
• Warranty: 2 years (Europe)
• Regulatory: Medical Device Class 1 (EU MDR 2017/745)
