Swivel support arm 372DA
foldingpositioningarticulated

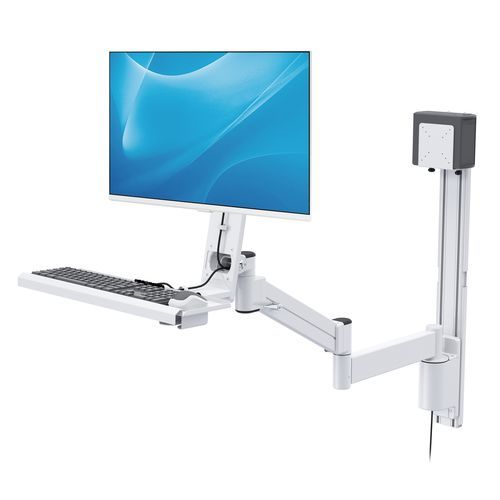

Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated
Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated
Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated - image - 2
Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated - image - 3
Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated - image - 4
Swivel support arm - 372DA - Diwei Industrial Co., Ltd. - folding / positioning / articulated - image - 5
Add to favorites
Compare this product
Go to the Diwei Industrial Co., Ltd. website for more information

Characteristics

Function
swivel, folding, positioning, articulated, tilting, extension
Applications
for LCD monitors, for LCD displays, for displays, for monitors, for keyboards
Configuration
wall-mounted
Other characteristics
high-stability, aluminum, lockable, with cable integration, VESA 100, VESA 75, VESA mounting, with keyboard arm
Load capacity

Min.: 8 kg
(17.6 lb)

Max.: 17 kg
(37.5 lb)

Description

Description
  • Excluding the monitor/accessories
  • Weight capacity: 8-12kgs (item no.: 372DA) (Including the weight of keyboard)
  • Weight capacity: 13-17kgs (item no.: 372EA) (Including the weight of keyboard)
  • CPU holder weight capacity: max 7kgs
  • Meets VESA 75/100mm mounting bracket and can be tilted and rotated
  • Features quick-release functionality for fast and convenient screen installation
  • Cable management design allows cables to go through inside the arm for a neat appearance
  • The arm can be tilted upward 30° and downward 30°
  • The arm has a locking feature to keep it stable during use
  • Extend LCD and keyboard from wall; fold equipment back out of the way when not in use
  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside work surface
  • Includes two sturdy aluminum posts: 90.5mm (W) x 500mm (L) x 20mm (D) (x2pcs) that mount to wall
  • 2-section articulating arm design for easy adjustment to desired angles


Technical specifications
  • Models / alias: 372DA / 372EA
  • Load capacity (372DA): 8-12 kg (including keyboard)
  • Load capacity (372EA): 13-17 kg (including keyboard)
  • CPU holder max capacity: 7 kg
  • VESA support: 75 x 75 mm and 100 x 100 mm
  • Tilt range: +30° / -30°
  • Rotation: monitor rotation supported (VESA mount)
  • Quick-release mechanism for screen installation
  • Cable management: internal routing through arm
  • Keyboard tray: ergonomic back-tilt, pull-out and stowable
  • Wall mounting posts: aluminum, 90.5 mm (W) x 500 mm (L) x 20 mm (D) × 2
  • Arm design: 2-section articulating with locking feature
