- Folding support arm
- Diwei Industrial Co., Ltd.

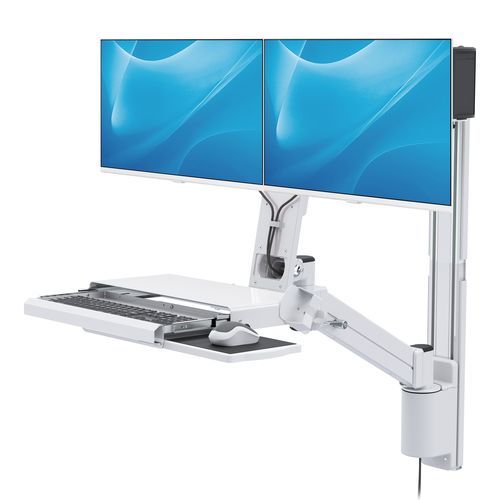

Folding support arm 372CAarticulatedtiltingswivel
Add to favorites
Compare this product
Characteristics
- Function
- articulated, tilting, swivel, folding
- Applications
- for monitors
- Application domain
- medical
- Configuration
- wall-mounted
- Other characteristics
- VESA mounting, VESA 75, VESA 100, with cable integration, aluminum, lockable
- Load capacity
Max.: 17 kg
(37.5 lb)Min.: 13 kg
(28.7 lb)
Description
Description
Features / Technical specifications
- Monitors and accessories excluded
- Weight capacity: 13–17 kg total (approximately 6 kg per monitor)
- CPU holder capacity: max 7 kg
- Compatible with VESA 75 / 100 mm mounting patterns; monitors can be tilted and rotated
- Quick-release mechanism for fast, tool-free screen installation
- Integrated cable management routes cables through the arm for a clean installation
- Arm tilt range: +30° / -30°
- Arm features a locking mechanism to hold position during use
- Extend LCD and keyboard from the wall; fold equipment back when not in use
- Ergonomic back-tilt keyboard tray maintains neutral wrist position; pull-out and stowable
- Includes two aluminum wall posts (90.5 mm W × 500 mm L × 20 mm D each)
- Single-section articulating arm for straightforward angle adjustment
Features / Technical specifications
- Model alias: 372CA
- Monitor weight capacity (total): 13–17 kg (approx. 6 kg per monitor)
- CPU holder capacity: 7 kg (max)
- VESA compatibility: 75 mm / 100 mm
- Tilt range: +30° / -30°
- Rotation: monitor rotatable per VESA mount capability
- Quick-release screen mount: yes
- Cable management: internal routing through arm
- Keyboard tray: ergonomic back-tilt, pull-out and stowable
- Arm design: single-section articulating arm with locking feature
- Wall posts: aluminum, 90.5 mm (W) × 500 mm (L) × 20 mm (D) × 2 pcs
- Intended use: dual monitor wall mounting solution (monitors and accessories excluded)
