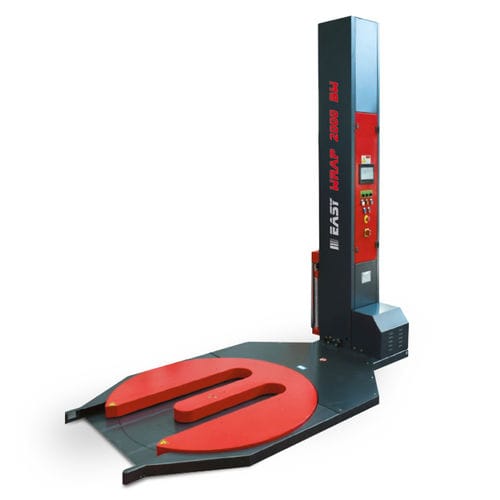

Automatic palletizer Easy Tab 2000

The Easy TAB 2000 W model is a semi-automatic machine for wrapping palletised loads with stretch film: with the possibility of inserting a forklift, adjustment of film tensioning by mechanical brake, gradual start of the table by inverter, manual or automatic work cycle, possibility of adjusting the number of wraps on the bottom and top of the pallet. Technical characteristics Machine structure in painted sheet steel Hinged column at the base for quick, easy installation Transmission of reel-holder carriage by chain Table diameter 1500 mm shaped to take pallet truck Working height 2400 mm Ambient conditions humidity: ≤ 90\% Working temperature: from + 0°C to + 40°C Mechanical clutch Possibility of lifting the machine from both front and rear with the forklift Provision for pneumatic press • • Inverter for progressive table starting and indexed stopping Digital adjustment of wraps at the base of the pallet Digital adjustment of wraps at the top of the pallet Rotation speed adjustable from 0 to 10 rpm. Carriage up and down speed Photocell reading delay Buttons for man/aut machine management
