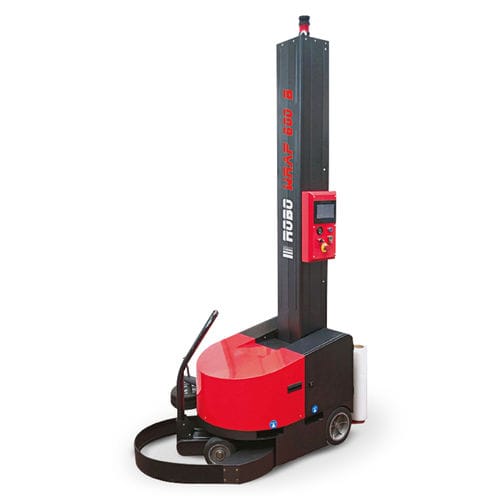

Handling palletizer Robot wrap 600A

case

The Robot Wrap 600A is a self-propelled wrapping robot for palletised loads of any shape, size and weight with stretch film. It is equipped with a digital touch screen control panel that means simple, functional management of the programs and the setting of the wrapping parameters.Film tensioning can be adjusted by means of a mechanical brake. Technical characteristics Hinged column at the base for quick, easy installation Transmission of reel-holder carriage by chain Working height 2400 mm Ambient conditions humidity: ≤ 90\% Working temperature: from + 0°C to + 40°C 1300 mm additional to product radius necessary for function Mushroom head emergency button for CE standards Safety bumper for machine stop Max rotation speed 90 m/min Handlebar for easy handling of motorised robot Height-adjustable side feeler wheel Liftable from the side Colour touch screen control panel Machine controlled by plc SIEMENS S7/1200 Autonomy up to 200 pallets without recharging (W 800x L1200X1600mm) Emergency wheel in case of low battery Digital adjustment of wraps at the base of the pallet Digital adjustment of wraps at the top of the pallet Rotation speed adjustment Carriage up speed adjustment Adjustment and control of film tension Carriage down speed adjustment Photocell reading delay Buttons for man/aut machine management
