Air filter unit AIF series

bacteriologicalfor healthcare facilitiesmedical

Overview

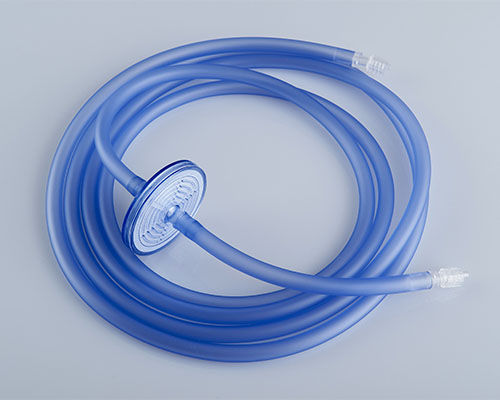

The Disposable Laparoscopic Insufflation Filter with Tubing Set (AIF series) provides a sterile, single-use gas pathway between CO2 insufflators and the patient for minimally invasive surgery. The system combines a high-efficiency microbial/viral filter (99.9999% efficiency) with 10 ft (3.0 m) soft, low-torque, kink-resistant medical tubing and multiple universal connector options. The product is CE MDR certified and designed to support safe, stable intra-abdominal insufflation and infection control.

Key Features

• Regulatory compliance: CE MDR certified; CFDA indicated for selected markets.
• High filtration efficiency: 99.9999% barrier against bacterial and viral particles.
• 10 ft (3.0 m) high-flow tubing: soft, low-torque, kink-resistant for consistent CO2 delivery.
• Material safety: DEHP-free medical-grade materials to reduce chemical risk.
• Sterile single-use design: prevents cross-contamination between cases.
• Universal connectors: Luer-lock, Push-fit, Quick-connect and 15 mm / 22 mm interfaces for broad compatibility.
• Packaging options: standard packaging quantities (25 pcs/ctn) per listed item numbers.

Clinical Applications

• Laparoscopic general surgery — cholecystectomy, appendectomy, hernia repair and other procedures requiring stable pneumoperitoneum.
• Gynecological laparoscopy — hysterectomy, myomectomy, ovarian procedures.
• Urological laparoscopy — minimally invasive urology interventions.
• Colorectal & gastrointestinal laparoscopy — advanced colorectal and GI laparoscopic procedures.
• Endoscopic-assisted MIS — combined endoscopic and laparoscopic workflows where gas-pathway filtration is required.

Compatible Instruments & Equipment

• CO2 insufflators used in laparoscopic and minimally invasive surgery.
• Laparoscopic trocars, access ports and cannula systems.
• High-flow insufflation and OR gas management systems.
• Standard 15 mm / 22 mm connector interfaces and Luer-lock, Push-fit, Quick-connect fittings.
• Disposable insufflation tubing and single-use OR gas accessories.

Specification (table)

• AIF-0005-000 — Insufflation tubing with filter, 10 ft., High Flow — 15/22 mm Connector — 25 PCS/CTN
• AIF-0030-000 — Insufflation tubing with filter, 10 ft — 15 mm Connector — 25 PCS/CTN
• AIF-0007-010 — Insufflation tubing with filter, 10 ft — Luer-lock — 25 PCS/CTN
• AIF-0008-010 — Insufflation tubing with filter, 10 ft — Push-fit — 25 PCS/CTN
• AIF-0028-000 — Insufflation tubing with filter, 10 ft — Quick-connect — 25 PCS/CTN

Technical specifications

• Filtration efficiency: 99.9999% (bacterial/viral barrier).
• Tubing length: 10 ft (approx. 3.0 m), soft, low-torque, kink-resistant, high-flow design.
• Material: medical-grade, DEHP-free materials; sterile, single-use.
• Connector options: Luer-lock, Push-fit, Quick-connect; 15 mm / 22 mm interfaces where applicable.
• Regulatory: CE MDR certified; CFDA indicated for selected markets.
• Packaging: typically 25 pcs per carton for listed item numbers.
• Intended use: delivery of CO2 insufflation gas for a wide range of laparoscopic and minimally invasive surgical procedures.
