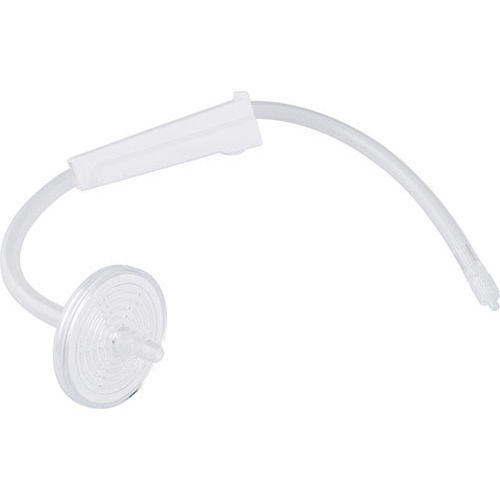

Healthcare facility smoke aspirator AIF-0029 series

with filtration systemwith integrated odor extraction system

Description
The Disposable Surgical Smoke Evacuation Set is a single-use device for minimally invasive surgery (MIS) designed to capture and remove surgical smoke generated during laparoscopic procedures, reducing staff exposure to airborne contaminants and odors.

Key System Features

• Advanced plume protection with combined particulate and gas filtration.
• Dual filtration: 99.9999% high-efficiency filter media plus integrated activated carbon for odor and toxin adsorption.
• Soft, low-torque DEHP-free medical-grade tubing for flexible, easy setup.
• Optional towel clamp (Item No. AIF-0029-100) for secure positioning.
• CE MDR certified.

Clinical Applications

• Laparoscopic general surgery – evacuation of smoke from electrosurgical dissection and coagulation.
• Gynecological laparoscopy – plume management during hysterectomy, myomectomy and other energy-assisted pelvic procedures.
• Urological laparoscopy – preserves visualization and reduces staff exposure during minimally invasive urology procedures.
• Colorectal and gastrointestinal laparoscopy – smoke and odor control in advanced colorectal procedures.
• Energy-based MIS procedures – compatible with electrosurgical, ultrasonic and other powered instruments.

Compatible Instruments & Equipment

• Laparoscopic trocars and access ports
• Electrosurgical generators and energy-based surgical devices
• Operating room suction systems and vacuum sources
• Laparoscopic and endoscopic imaging systems
• OR smoke management accessories and disposable suction tubing

Clinical Benefits / Feature Highlights

• CE MDR certified: meets current European medical device regulations.
• 99.9999% filtration: ultra-high efficiency particulate removal.
• Odor & toxin adsorption: integrated activated carbon layer neutralizes plume gases and odors.
• Flexible setup: DEHP-free, low-torque tubing for easy integration into OR workflows.
• Towel clamp option: accessory for stable attachment during surgery (AIF-0029-100).

Technical Specifications / Packaging

• Model designations: AIF-0029-000, AIF-0029-100
• Filtration efficiency: 99.9999% high-efficiency filtration media with activated carbon layer
• Tubing: soft, low-torque DEHP-free medical-grade tubing
• Certification: CE MDR
• Packaging / Item summary:
  Item No. | Description | Package
  AIF-0029-000 | Smoke evacuator | 50 PCS/CTN
  AIF-0029-100 | Smoke evacuator, with towel clamp | 50 PCS/CTN
