Dog animal pregnancy detector PDd

Product overview

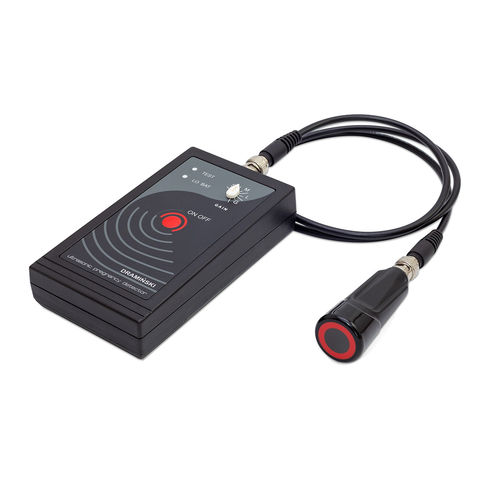

Dramiński PDD ultrasonic pregnancy detector for dogs is a portable device designed for early, rapid detection of pregnancy in bitches. Intended for professional and individual breeders, it is simple to operate and maintain and provides a clear audible/visual change when amniotic fluid is detected.

Benefits

• High diagnostic accuracy in healthy animals
• Adjustable gain to suit different sizes and breeds
• Enables early clinical management of pregnant bitches
• Supports rapid grouping of animals to reduce financial losses
• Facilitates informed breeding decisions through early detection

Included in the set

• Dramiński PDD ultrasonic pregnancy detector
• 2 × BNC connecting cables
• Ultrasonic probe
• Bottle of liquid paraffin
• 1 × 9 V alkaline battery (type 6LF-22)
• Transport case with foam insert
• User manual

Q&A (summary)

• How does the PDD pregnancy tester work? — The probe emits an ultrasound beam that is reflected by amniotic fluid in uterine horns; the reflected signal changes (intermittent to continuous) when fluid is present.
• How effective is the test? — In healthy animals the results are nearly 100% accurate; inflammatory conditions can distort readings.
• What may distort results? — Inflammatory changes (e.g., pus in pyometra) or a full urinary bladder can produce false signals.
• What signal confirms pregnancy? — The device signal changes from intermittent to continuous upon detection of amniotic fluid.
• Is the tester suitable for all dogs? — Yes; adjustable gain allows use on breeds from miniature to molossoid.

Technical data
Unit weight: 340 g (with battery)
Dimensions: 15.5 x 8.0 x 4.5 cm
Probe cable length: 110 cm
Power supply: 1 × 9 V alkaline battery (type 6LF-22)
Battery low indication: automatic
Keyboard: membrane
Power input: approx. 33 mA
Estimated working time on one battery: approx. 17 h
Recommended operating temperature: 10°C to 45°C
Recommended storage temperature: 5°C to 50°C
EAN code: 5906874410066

Characteristics / technical specifications

• Model: PDD ultrasonic pregnancy detector
• Brand: Dramiński
• Weight (with battery): 340 g
• Dimensions: 15.5 × 8.0 × 4.5 cm
• Probe cable length: 110 cm
• Power: single 9 V alkaline battery (6LF-22)
• Battery life: approx. 17 hours
• Power consumption: approx. 33 mA
• Battery low indicator: automatic
• Keyboard type: membrane
• Operating temperature range: 10°C–45°C
• Storage temperature range: 5°C–50°C
• EAN: 5906874410066
