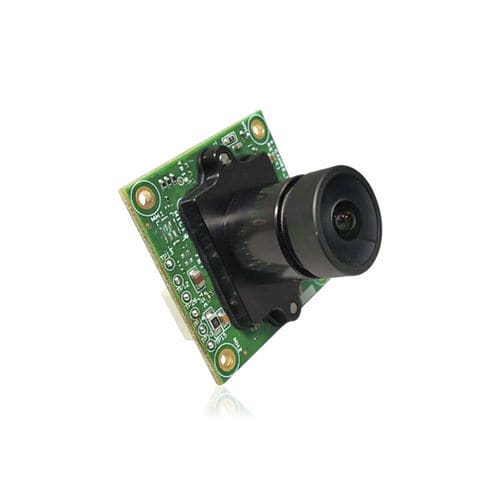

Monitoring camera e-CAM82_USB - Sony STARVIS™ IMX415

digitalfull HD4K

Houses 8MP SONY STARVIS® IMX415 Image sensor Low light performance Fixed Focus On-board high performance ISP UVC compliant: No additional drivers required. Key features: Frame Rate: Streams Full HD @ 60 fps & 4K @ 30 fps Refer pdfDatasheet  for complete frame rate details. Output format: Uncompressed YUY2 and Compressed MJPEG Supported OS: Windows, Linux, Android * and MAC ** Lightweight, versatile, and portable single-board solution Module features: Sensor: IMX415 from SONY STARVIS™ Focus Type: Fixed focus Resolution: 8MP Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/2.8" Output Format: : Uncompressed YUY2 and Compressed MJPEG Pixel Size: 1.45 μm x 1.45 μm Sensor Active Area: 3864 (H) x 2176 (V) Array Size: 3864 (H) x 2176 (V) Holder: M12 (S-Mount) FOV: 115.9°(D), 99.02°(H), 51.81°(V) (with the lens provided by e-con) Electrical and Mechanical: Operating Voltage: 5V +/- 5% Operating Temperature Range: 0°C to 70°C Power Requirements: Max: 1.07W, Min: 0.73W Size in mm (l x b x h): Without lens: 30 mm x 30 mm x 25 mm Board Weight: With lens: 37.5 Grams Without lens: 8 Grams Miscellaneous: Compliance: FCC, RoHS Launched on: launching date Supported OS - Windows, Linux, Android * and MAC ** Sample Application : e-CAMView – Windows Camera application for Video recording, Video Preview and Still Capture. QtCAM – Linux Camera application for Video recording, Video Preview and Still Capture. Still Image Resolutions : 8MP (JPEG & BMP) Still Capture: Software application control UVC Controls : Brightness Contrast Hue Saturation Sharpness Gamma White Balance (Manual and Auto) Backlight Comp Gain
