Camera for life sciences applications See3CAM_CU31 - 3MP Sony® ISX031

digitalHDRfull HD

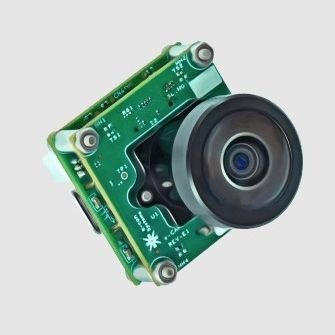

HDR camera module based on Sony® ISX031 sensor incorporating sub-pixel technology Low-light 120dB HDR without Motion artifacts LED Flicker Mitigation (LFM) 5:4 Aspect Ratio for Enhanced Vertical Coverage Automotive Temperature : -40°C to 85°C On-board high performance ISP See3CAM_CU31 is a 3 MP HDR USB camera based on the 1/2.42" Sony ISX031 automotive-grade image sensor. This low-light camera leverages the sensor's sub-pixel HDR technology to offer superior HDR performance of up to 120 dB, along with LED Flicker Mitigation (LFM). This combination ensures reliable images without motion blur, even in challenging outdoor lighting conditions. This UVC-compliant USB camera streams video data of 3MP @ 30fps. It also has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements. Key features: Frame Rate: Streams Full HD @ 30fps & 3MP @ 30fps Refer pdfDatasheet  for complete frame rate details. Output format: UYVY Supported OS: Windows 10/11, Linux (Ubuntu 18.04/20.04/22.04) Unique ID for each camera Lightweight, versatile, and portable two-board solution Interface: Interface: USB 3.2 Gen 1 device Connector: Type-C reversible interface connector UVC Compliant - no additional drivers required Module Features: Sensor: ISX031 from Sony® Focus Type: Fixed focus Chroma: Color Shutter Type: CMOS Rolling Shutter Optical Format: 1/2.42" Aspect Ratio: 5:4 Output Format: UYVY Pixel Size: 3μm x 3μm Sensor Active Area: 1937 (H) x 1553 (V) Array Size: 1937 (H) x 1553 (V) Dynamic Range: Max upto 120 dB Lens Holder: M12 (S-Mount) FOV: Wide angle: 128.7°(H), 98.7°(V), 170.1°(D) (Default lens provided by e-con)
