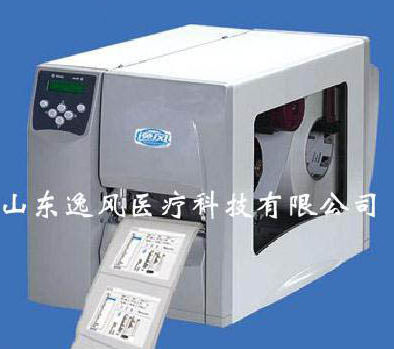

Thermal transfer printer EF613

labelmedicalfor sterilization archives

Key Features

• Software-driven editing, storage and management of sterile item package information for label printing.
• On-demand retrieval, modification and printing of package data.
• Compatible with Windows XP / 7 / 8 / 10.
• Supports printing of package metadata: equipment/package name and item quantity.
• Prints sterilization date, expiry date, operator, sterilizer/furnace number, cycle count, department name, sterilization content and barcode.
• Supports printing of sterilization instructions and blank labels.
• Optional label sizes: 90×77 mm; 77×50 mm; 60×40 mm; 47×30 mm; 47×60 mm; 60×80 mm.
• Includes 299 built-in sterile package templates for quick selection and printing.
• Built-in long ribbon and adjustable print speed for continuous printing.
• Server–client architecture for LAN queries and networked operation.

Functionality
The EF613 provides centralized software control for managing sterile package labels. Users can select from preconfigured templates or create custom labels, populate standard metadata fields, generate barcodes and print on demand. Networked deployment via server–client mode enables query and printing from multiple workstations.

Usage
Designed for printing labels for sterilized medical instruments and packaged sterile items in hospitals, central sterilization departments (CSSD) and medical device sterilization facilities. Supports various label formats and continuous production printing workflows.

Technical specifications

• Model: EF613 Label Printer
• Software compatibility: Windows XP / 7 / 8 / 10
• Built-in templates: 299 sterile package templates
• Label sizes (optional): 90×77 mm; 77×50 mm; 60×40 mm; 47×30 mm; 47×60 mm; 60×80 mm
• Printable fields: package name, item quantity, sterilization date, expiry date, operator, sterilizer/furnace number, cycle count, department name, sterilization content, barcode
• Printing features: continuous printing, long ribbon, adjustable print speed
• Network: server–client architecture for LAN queries
