Medical sealer EF100-E

automaticbenchtopcontinuous

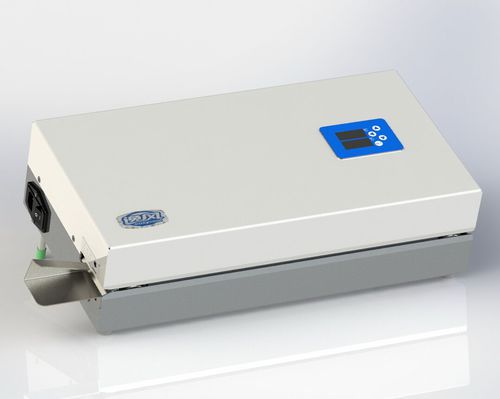

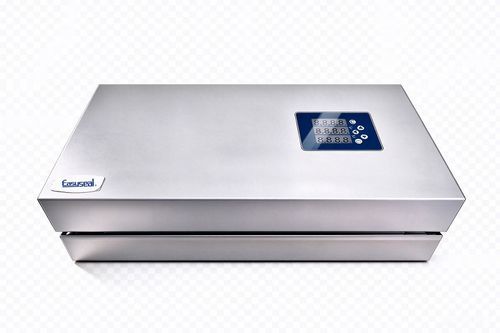

Easyseal Medical Continous Rotary Sealing Machine EF100-E

This model is designed for continuous sealing of paper-plastic bags, 3D paper-plastic bags and paper-paper bags. The sealing process satisfies the requirements of high-temperature steam sterilization, low-temperature EO sterilization, plasma sterilization and radiation sterilization. Seal quality meets corresponding international standards. Stainless steel and carbon steel models, as well as rolling worktable are optional.
Sealable materials:

• Bags in compliance with EN868-5 and YY/T 0698-5 ;
• Paper bags in compliance with EN868-4 and YY/T0698-4;
• High density polyethylene materials (such as Tyvek);
• Aluminum foiled materials.

Technical Parameters

• Seal speed: 10 m/min;
• Seal margin: 0-35mm adjustable;
• Seal width: 12mm;
• Work temperature: 60-220℃;
• Temperature precision: ≤1%;
• AC power:110V/220V±10% 50/60Hz
• Power: 500W;
• Dimension: 482×242×157mm (L×W×H) (without support and guide plate);
• Weight: 13kg;
• Sealing orientation: from left;

Main Characteristics

• Three-line high-light LED display, touchable keyboard, temperature setting.
• Temperature controlled by microcomputer, accuracy ±1%, working temperature 60~220℃;
• High-speed increase of temperature: only 60s required from 20℃to 180℃ and only 10s required from 120℃to 180℃. Highly efficient and energy saving;
• Safe operation: If the sealing temperature is out of setting more than ±4℃, the machine will automatically stop working, which effectively guarantees the seal quality and safety.
• Sealing speed: 10m/min; automatic sealing test using light-control technique;
• Sealing indexes meet standards WS310.2-2016 and YY/T 0698.5-2009;
• Seal margin: 0~35mm adjustable; Sealing width: 12mm;
• With adjustable fixed-force system, the machine can seal 3D pouches and other paper pouches with different thickness by automatically adjusting sealing pressure;
• Automatic failure warning and automatic detection during working;
• Advanced flat ceramic heating components allow quick increase of temperature, well-distributed heating, high-temperature resistance, long service life and high heat efficiency;
• The machine is fitted with complete components such as the cutting machine, ultra silent roller worktable, multipurpose workstation of the sealing device, and other peripheral accessories to improve its utilization rate and bring convenience to users.
