horizontal sieve shaker / vertical / sample preparation / benchtop
E6100

{{requestButtons}}

Characteristics

  • Motion type:

    horizontal, vertical

  • Applications:

    sample preparation

  • Configuration:

    benchtop

  • Display:

    digital

  • Speed:

    180 rpm, 280 rpm (1,131 rad.min-1)

Description

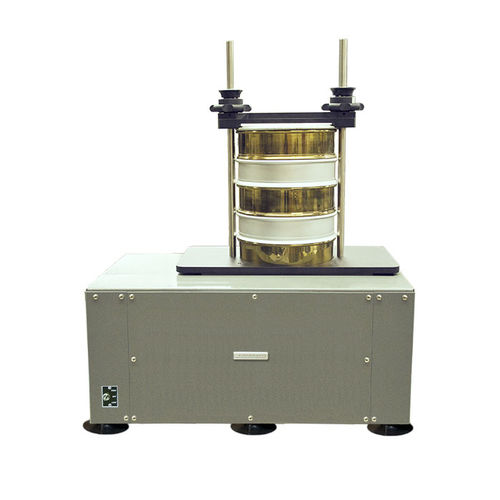

Stainless Steel Sieve Shaker
The E6100 utilizes Eberbach's rocker arm design reciprocal shaker system. The rocker arms actually create two axis of motion, a vertical component of motion along with a horizontal axis of motion which produces an arc motion. This generates a very aggressive agitation action which increases the efficiency of the separation with reduced noise levels. Multiple platform options are available to accomodate most sieve sizes. An optional upgrade allows the sieve platforms to accept 2 different sieve sizes. A easy to use locking mechanism secures the sieves to the shaker.

Specifications:
Speed Range: 180 or 280 osc/min
Max Load Capacity: 40 lbs
Max Sieve Capacity: 18" Total Stacking Height. Custom Heights Available
Electrical: 115V @ 50/60hz
Weight:76 lbs
Dimensions (power unit): Length - 25 in | Width - 21 in | Height - 12 in
