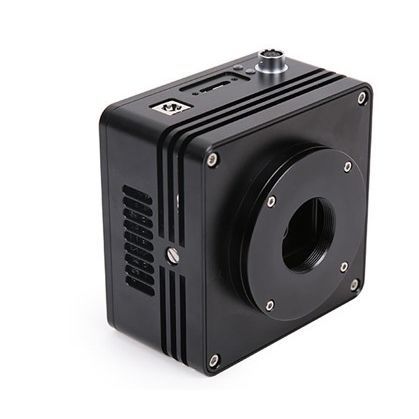

Inspection camera EHD SC585-NIR-CTR

digital4K3840 x 2160

In modern industrial image processing, the wavelength spectrum often determines process reliability. The SC585-NIR-CTR is a temperature stabilized 8.3MP monochrome rolling shutter cooled camera (IMX585, 1/1.2″), with 2.9 µm pixels and high-resolution imaging. USB3.0 transmission, 4K 45 fps and 1080P 70 fps. Built-in TEC cooling (typical ΔT≈5–10 °C) with closed-loop temperature control and anti-fogging structure, maximum exposure approximately 300 s, suitable for low-light microscopy, online inspection, and large field-of-view recording. Key Features Sensor: Sony IMX585 (monochrome, rolling shutter) 8.3MP Interface: USB3.0; 8/12-bit output Dynamic range: TBD; Sensitivity: 19120mV TEC cooling: ΔT≈5–10 °C; closed-loop temperature control, anti-condensation Maximum exposure: 300s Gain Control: The camera features switchable gain modes: HCG (High Conversion Gain) for better performance in low-light environments, providing enhanced image quality. LCG (Low Conversion Gain) for higher dynamic range in brighter conditions, reducing noise in the image. Wavelength Sensitivity: The camera is capable of detecting light up to 1200 nm, making it suitable for near-infrared applications, such as surveillance, industrial inspection, or scientific research. Trigger & GPIOs: It has trigger input/output functions, allowing synchronization with external equipment, and 2 GPIOs (General Purpose Input/Output) for custom control or integration with other devices. Includes EHDView and cross-platform SDK (Windows/Linux/macOS/Android) This combination of high resolution, NIR sensitivity, and flexible gain options makes the SC585-NIR-CTR suitable for a variety of demanding imaging tasks.
