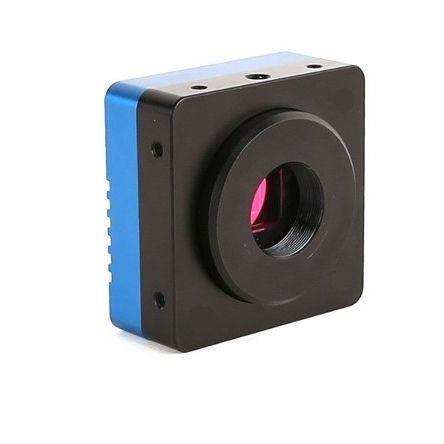

Inspection camera EHD SCM678-NIR-TR

digitalhigh-definition4K

The SCM678-NIR-TR is a specialized high-performance camera featuring the IMX678 Starvis 2 sensor. Here are the key details of the camera: Sensor: IMX678 Starvis 2, a 1/1.8″ Rolling Shutter sensor, which enables high sensitivity and clear imaging in low-light conditions. Resolution: 3840×2160 pixels (4K), providing high-definition images at a detailed level. Frame Rate: 45 fps at full resolution, allowing smooth video capture for dynamic scenes. Interface: USB 3.0, offering high-speed data transfer for real-time applications. Sensitivity: 11288 mV, a very high sensitivity, which makes the camera capable of capturing clear images even in low light. Wavelength Sensitivity: The camera is sensitive up to 1200nm, enabling it to capture near-infrared (NIR) light, which is crucial for NIR laser detection and other specialized imaging applications. Gain Control: The camera features switchable gain modes: HCG (High Conversion Gain) for better performance in low-light environments, providing enhanced image quality. LCG (Low Conversion Gain) for higher dynamic range in brighter conditions, reducing noise in the image. Trigger Input/Output: The camera has trigger input and output functions, allowing for synchronization with other devices in automated or time-sensitive setups. GPIOs: The two General Purpose Input/Output (GPIO) pins provide additional control options for triggering or interacting with external devices, such as sensors or other peripherals. This camera is designed for applications that require high sensitivity, fast data transfer, and precise timing, such as NIR laser detection, scientific research, or industrial inspection systems.
