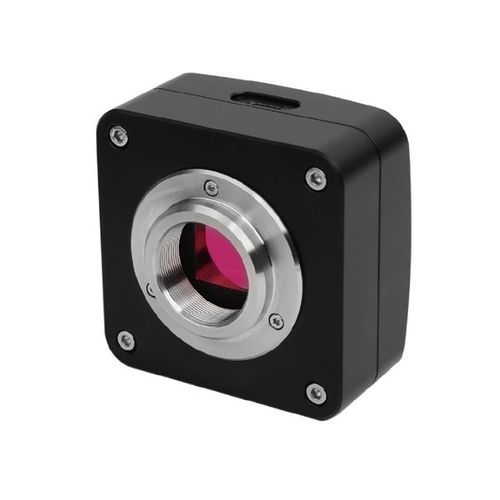

Inspection camera EHD-E10

for microscopyfor life sciences applicationsdigital

The EHD CTR and ITR cameras are engineered to meet the high demands of modern fluorescence and light microscopy. Designed for researchers and professionals working with weak or low-intensity signals, these cameras offer superior sensitivity, The SCM-E10 series from EHD imaging GmbH represents the latest generation of USB cameras, based on USB 3.2 Gen 2 interface technology with a theoretical maximum bandwidth of 10 Gb/s, approximately double that of standard USB 3.0. This high-bandwidth interface significantly reduces data transfer limitations and enables reliable high-frame-rate image acquisition for data-intensive imaging applications. The cameras feature a USB Type-C interface, supporting reversible connection and improved mechanical robustness, while maintaining compatibility with standard USB host systems. The SCM-E10 series integrates high-performance Sony IMX CMOS sensors (IMX472, IMX383, IMX585), providing high quantum efficiency, low read noise, and wide dynamic range, which are critical for low-light and high-contrast imaging scenarios. The cameras support 8-bit and 12-bit pixel formats, allowing users to balance data throughput and image fidelity according to application requirements. The architecture is optimized for both high-speed live preview and high-precision image acquisition, making the series suitable for demanding measurement and analysis tasks. Typical application areas include high-speed and fluorescence microscopy, biomedical and life-science research, semiconductor and electronics inspection, industrial machine vision and quality control, and scientific and laboratory imaging systems requiring stable, high-throughput data transfer.
