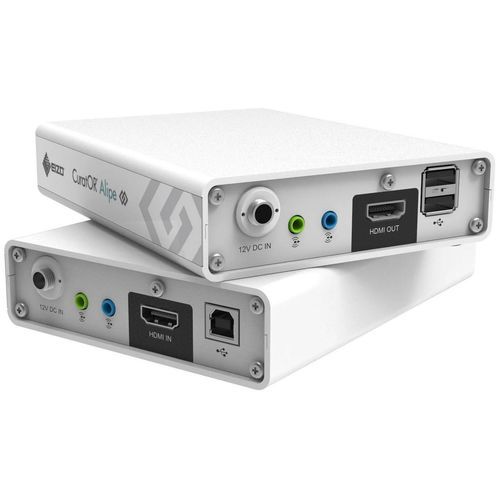

Video encoder/decoder TIP0811

audiosignalmulti-channel

Overview
The TIP0811 transmits image and video data as well as control signals over a 10 Gbit network without visible delay or loss. Using standardized IP network technology, flexible video routing and unified transmission of images, audio, video and control signals are possible to support advanced operating-room workflows and remote operation.

Key features

• Lossless transmission up to 4K/60 Hz over 10 Gbit infrastructure
• Multiple views on one monitor via one line (Single, Side-by-Side, Picture-in-Picture, QuadView)
• Passive (fanless) cooling for silent operation and preserved laminar airflow in the operating room
• Compact and lightweight encoder/decoder devices for easy integration in equipment-dense environments
• Remote control capability and KVM integration via IP
• Extensive transmission distances via fiber (up to 400 m without additional components)
• Open, standardized interfaces for interoperability with devices from multiple manufacturers

Product Features (detailed)

• Lossless Transmission up to 4K: Uses 10 Gbps infrastructure for lossless transmission of up to 4K UHD (3840 x 2160) at 60 Hz without compression to ensure optimal image quality for high-resolution video.
• Instantaneous Image Viewing: Image transmission occurs without visible delay to provide a realistic sense of movement and support precise hand-eye coordination during delicate procedures.
• Remote Control Capability: IP-based data transmission allows images, audio, video and control signals to be sent over a single fiber. Enables advanced KVM solutions where remote computers can be operated directly from the operating-room system via the Alipe network.
• Integrated Multiple View with KVM Control: Display and control multiple image sources simultaneously using layouts such as Picture-in-Picture, Side-by-Side and QuadView.
• Extensive Transmission Distance: Fiber optic transmission supports distances up to 400 meters without additional components, enabling networking across rooms and buildings (operating rooms, conference rooms, lecture halls, etc.).
• Open System: Supports open and standardized interfaces for seamless use with devices from a wide range of manufacturers.

Technical specifications

• Miscellaneous: Cabinet Color: White
  Certifications & Standards: CE, IEC/EN 62368-1, UL 62368-1, CB 62368-1, FCC, RoHS, REACH, WEEE, China RoHS
  Optional Accessories: Optical module (SFP+ 10G LC), power supply, connection and mounting accessories
• Network: Data Rate: 10 Gbit/s
  Connector: SFP+ (10 GbE, optional SFP+ module)
  Cable: Fiber duplex LC/LC (SFP+ module required)
• Video Signals: Input Resolution: Up to 4K (4096 x 2160), 1 x uncompressed, 60 Hz
  Output Resolution: Up to 4K (4096 x 2160), 1 x uncompressed, 60 Hz
  Interface: TIP0811-T: HDMI® (in) · TIP0811-R: HDMI® (out)
  Modes: Single In / Single Out (up to 4K/60 Hz)
  Multiview: Single, Side-by-Side, Picture-in-Picture, QuadView
• Interfaces: Audio: Audio jack x 2 (in/out)
  USB Ports: TIP0811-T: USB-B · TIP0811-R: USB-A x 2
• Features & Functions: Miscellaneous: Passive cooling
  Control: Mouse, keyboard and touch control
  Services: Remote diagnosis, remote firmware update, API control
• Power: Power Requirements: 12V DC, external power supply, 100-240V AC
  Power Consumption: 17 W, optional: 5 W (for USB)
• Physical Specifications: Net Weight: 520 g
