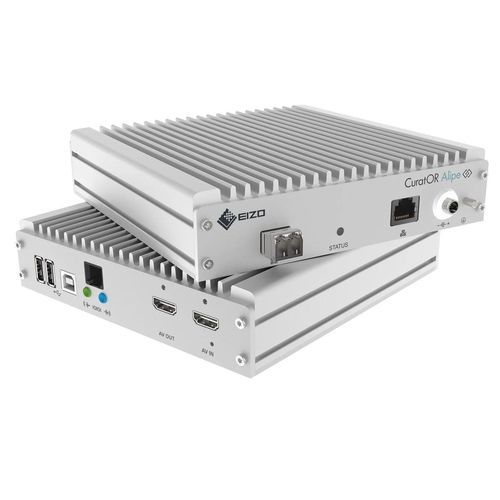

Audio encoder/decoder TIP0810

signalvideomulti-channel

Overview
With the EIZO TIP0810, image and video data, as well as control signals, are transmitted lossless and latency-free over a 10 Gbit network. The device enables flexible video routing using standardized IP network technology suitable for medical environments such as operating rooms and lecture/distribution facilities.

Key benefits

• Latency-free transmission to support precise hand–eye coordination during procedures
• Multiple views on a single monitor via one connection (Side-by-Side, Picture-in-Picture, QuadView)
• Passive, noiseless cooling to avoid interference with laminar airflow in the OR

Product Features

• Lossless 4K Transmission: Up to 4K UHD (3840 x 2160) at 60 Hz over a 10 Gbps video-over-IP network without compression to preserve diagnostic image quality.
• Instantaneous Viewing: Image delivery without visual delay for seamless coordination during endoscopic and minimally invasive interventions.
• Extended Transmission Distance: Uses fiber-optic cabling to distribute image/audio beyond the operating theatre to conference rooms or lecture halls.
• Encoder/Decoder Flexibility: Units can function as encoder or decoder to simplify installation and reduce inventory and maintenance.
• Scalable Compatibility: Fully compatible with TIP0210-DVI and TIP0410 for scalable upgrades and integration with existing installations.
• Remote Operation Support: IP-based transmission carries image, audio, video and control data (keyboard/mouse) over one fiber for KVM and remote workstation operation.
• Integrated Multiview with KVM: Simultaneous display of multiple video sources on one screen with integrated KVM control for source operation.
• Passive Cooling: Ensures silent operation and minimal mechanical wear while preserving OR airflow conditions.
• Open Interfaces: Standardized, open interfaces for interoperability with devices from different manufacturers.

Miscellaneous (from page)
Cabinet color: Silver
Certifications & standards: CE / UKCA; IEC/EN 62368-1; tested for IEC60601-1-2; RoHS; REACH; WEEE
Optional accessories: Optical module (SFP+ 10G LC); power supply; connecting and mounting accessories

Network
Data rate: 10 Gbit/s
Connector: SFP+ (10 GbE, optional SFP+ module)
Cable: Fiber duplex LC/LC (SFP+ module required)

Video Signals
Input resolution: Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
Output resolution: Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
Interface: HDMI® (in), HDMI (out)
Modes: Single In / Single Out (up to 4K/60Hz)
Multiview: Side-by-Side, Picture-in-Picture, QuadView

Interfaces
Audio: 2x audio jack (in, out)
USB ports: 2x USB-A, 1x USB-B

Features & Functions
Control and status: Mouse and keyboard operation
Power note: Maximum power consumption 17 W; optional 5 W (for USB); passive cooling

Power
Power requirements: External power supply, 230 VAC
Maximum power consumption: 17 W (optional 5 W for USB), passive cooling

Physical Specifications
Net weight: 1050 g

Technical specifications

• Model: TIP0810
• Brand: EIZO
• Data rate: 10 Gbit/s
• Video: Up to 4K UHD (3840 x 2160) at 60 Hz, uncompressed (encode/decode)
• Network connector: SFP+ (10 GbE, optional SFP+ module)
• Optical cable: Fiber duplex LC/LC (requires SFP+ module)
• Video I/O: HDMI in / HDMI out
• Multiview modes: Side-by-Side, Picture-in-Picture, QuadView
• Audio: 2x audio jack (in, out)
• USB: 2x USB-A, 1x USB-B
• Power: External 230 VAC; max consumption 17 W (optional 5 W for USB)
• Cooling: Passive, noiseless
• Weight: 1050 g
• Cabinet color: Silver
• Certifications & standards: CE / UKCA; IEC/EN 62368-1; tested for IEC60601-1-2; RoHS; REACH; WEEE
• Optional accessories: SFP+ optical module (10G LC), power supply, connecting and mounting accessories
