Temperature tester 901
disintegrationfor the pharmaceutical industrybenchtop

temperature tester
temperature tester
Add to favorites
Compare this product


Tested parameter
temperature, disintegration
for the pharmaceutical industry
Other characteristics

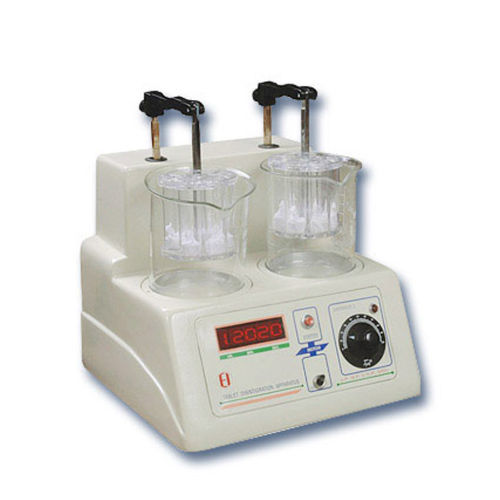

Digital Tablet Disintegration Apparatus is designed for accurate estimation of disintegration time of tablets as per IP/USP standards. The instrument 901 is designed to test two batches of 6 tablets, simultaneously & Model 904 tests single batch of 6 tablets. The unit consists of beakers having capacity of 1000 ml each. In these beakers, suitable disintegration media can be taken . These are temperature controlled using an in-built heater and a highly sensitive thermostat fitted inside the instrument. Microprocessor based time totalizer is provided for accurate time read out. Features Digital timer with 1 second resolution Accurate time out provided by microprocessor based time totalizer Baskets move Up & Down as per IP/USP test specifications Temperature Controlled by sensitive thermostats Specifications Time Display - 5 Digit Red LED ½ “ Display Up and Down Speed - 30 rpm ± 2 rpm Accuracy - 2% Resolution - 1 sec. Operating Temp. Range - 0 – 100°C Power - 230V ± 10%, 50Hz.AC Dimensions - (Without Rods) 320 x 290 x 290mm (L x B x H) (With Rods) 320 x 290 x 370mm (L x B x H) Weight - 8 Kgs. (Approx.) Accessories - Dust Cover, Operation Manual, Glass Jar, Basket with 6 Tubes & Guided Disc
