Friability tester 903
for tabletsbenchtopdigital

friability tester
friability tester
Add to favorites
Compare this product


Characteristics

Tested parameter
friability
Applications
for tablets
Configuration
benchtop
Other characteristics
digital, drum

Description

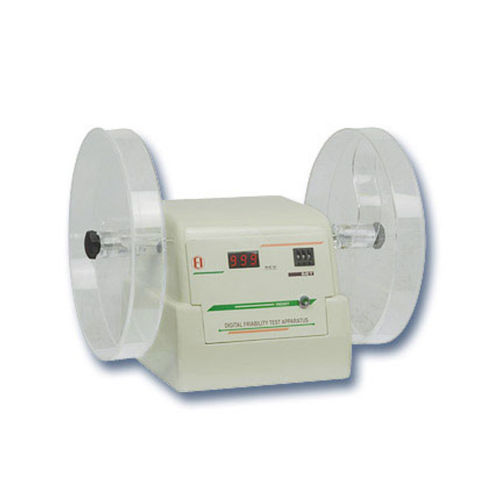

Digital Friability Test Apparatus is a precision instrument suitable for measuring obression strength of tablets. The unit is equipped with two transparent acrylic drums which rotate at a speed of 25 ± 1 RPM. Each of the two acrylic drums are provided with an arm which carries the tablets along with it up to a predetermined height and allows them to fall from that specified height, while the drums are rotating, It is fitted with a digital revolution counter showing the current number of revolutions for the test. A thumb wheel switch is used to set the desired number of rotations. Provision is made to remove the lid of the acrylic drum by unscrewing just one knob. This is available in 1 drum and 2 drum assemblies. Specifications Display - 3 digit bright red seven segment LED display Accuracy - ± 1 revolution Resolution - 1 revolution Range - 0-999 revolutions Operating Temp. Range - 10º-50º C Power - 230 V ± 10%, 50 Hz. AC Dimension - 325 x 220 x 225 mm (L x B xH) 430 x 220 x 225 mm (L x B xH) Weight - 9.5 Kg. (Approx Accessories - Drum 2 No. , 1 Nos., Dust Cover-1 No. Features Seven segment LED display Sturdy motor to drive drums at constant speed
