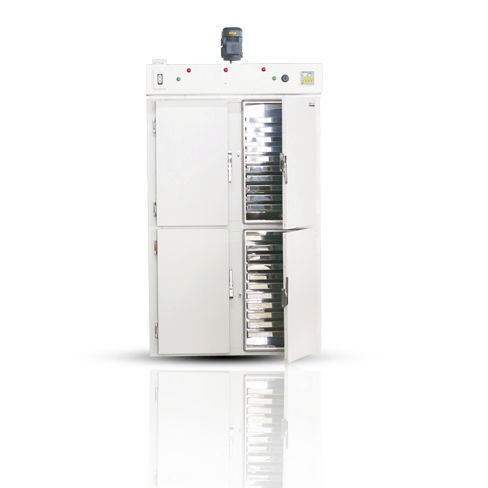

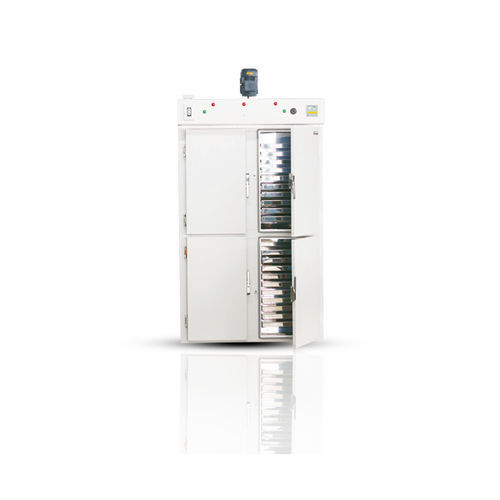

Heating oven M 1074

for general applicationslaboratoryhot air

Overview The M 1074 industrial oven provides high-capacity, precision-controlled heating for material treatment, drying and laboratory-scale production processes. PID digital control and forced-air circulation deliver uniform temperature distribution across a 580 L stainless-steel chamber.

Technical specifications

• Temperature working range: Ambient temperature +5°C to 250°C
• Chamber volume: 580 liters
• Thermoelement type: J type
• Temperature control: PID digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1°C
• Thermostat working accuracy: ±1°C
• Thermometer display increments: 1°C
• Chamber temperature accuracy: ±5°C
• Timing range: 1–9999 minutes (timing starts when set temperature is reached)

Dimensions & weight

• Chamber dimensions (W × H × D): 42 × 80 × 43 cm
• Overall dimensions (W × H × D): 120 × 225 × 50 cm
• Net weight: 245 kg
• Gross weight: 285 kg
• Shelves: 40 stainless-steel shelves

Electrical & performance

• Heater type: Stainless steel tube heater, 9000 W
• Circulation power rating: 550 W
• Total power rating: 9550 W
• Power supply: AC 380 V / 50–60 Hz, three-phase
• Fuse: 3 × 25 A

Safety & construction

• Safety thermostat: liquid expansion
• Casing: sheet steel with stoved enamel paint
• Insulation: rock wool
• Chamber material: stainless steel

FAQ

• What is the maximum operating temperature of the M 1074 Industrial Oven? The oven operates at a maximum temperature of 250°C, suitable for a wide range of industrial heat-treatment and drying applications.
