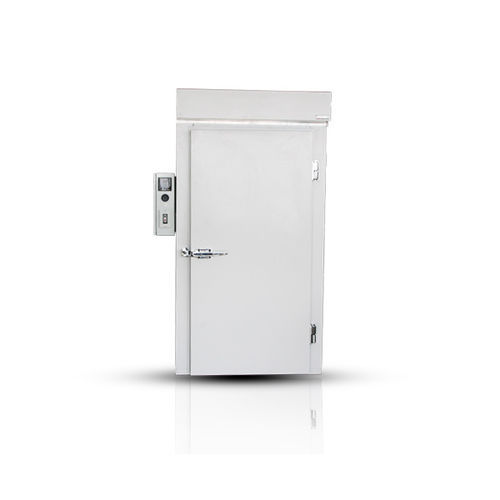

Heating oven M 1075

for general applicationshot airforced convection

Description The M 1075 industrial oven is engineered for continuous industrial thermal processes that require a large chamber and precise temperature control. It provides uniform heat distribution across a 1250 L chamber with an operating range of +5°C to 250°C. Stainless steel tubular heaters (18,000 W) together with a 550 W circulation fan support high-capacity heating cycles. PID digital control with SSR switching enables accurate, repeatable temperature profiles for drying, curing, aging and similar production processes.

Technical Specifications

• Temperature Range: +5°C to 250°C
• Chamber Volume: 1250 liters
• Type of Thermoelement: J type
• Temperature Control: PID Digital control
• Load Switching Element: SSR (Solid State Relay)
• Thermostat Accuracy: ±1°C
• Chamber Temp Accuracy: ±5°C
• Heater Power Rating: 18,000 W
• Circulation Power Rating: 550 W
• Casing Material: Sheet steel finished in stoved enamel paint
• Chamber Material: Sheet steel finished in stoved enamel paint
• Insulation Material: Rock wool
• Chamber Dimensions (w x h x d): 85 x 175 x 84 cm
• Overall Dimensions (w x h x d): 135 x 238 x 110 cm
• Net Weight: 300 kg
• Gross Weight: 360 kg

Category
Industrial Ovens

Safety
The M 1075 is equipped with a safety thermostat with liquid expansion (50–300°C) to protect against over-temperature during high‑temperature cycles.

Key specifications

• 1250 L chamber, +5°C to 250°C
• 18,000 W stainless steel tubular heaters
• PID digital control with SSR switching
• Circulation fan: 550 W
• Insulation: rock wool
• Chamber dimensions: 85 x 175 x 84 cm
• Net/Gross weight: 300 / 360 kg
