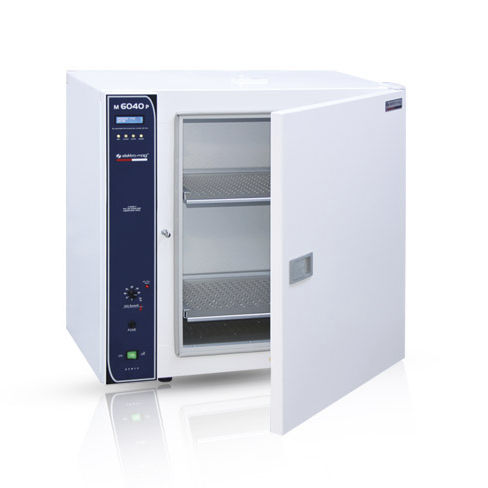

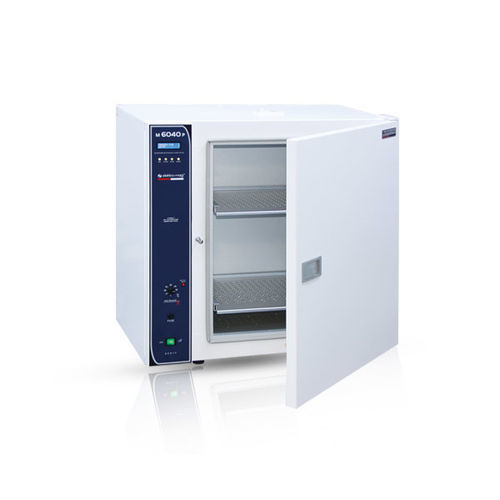

Medical sterilizer M 6040 P

laboratorydry heathot air

Overview
Elektro-mag M 6040 P hot air sterilizer provides controlled dry-heat sterilization with a 120 L anodized aluminum chamber. The unit offers PID digital temperature control from ambient +5 °C to 250 °C, SSR load switching and a safety thermostat with liquid expansion. Designed for medical and laboratory environments, it delivers repeatable, moisture-free sterilization cycles while maintaining operator safety.

How the hot air sterilizer ensures effective sterilization
The M 6040 P uses dry heat to inactivate microorganisms by maintaining precise temperature and exposure time. PID regulation combined with uniform chamber distribution prevents condensation and ensures effective sterilization of instruments and materials compatible with dry-heat processes.

Advantages
The anodized aluminum chamber offers reduced weight, good thermal conductivity and corrosion resistance. Adjustable temperature settings, SSR switching and accurate thermostat control provide stable, repeatable cycles suitable for clinical and laboratory workflows.

Technical details (table)
Working temperature range — Ambient temperature +5 °C to 250 °C
Capacity (Chamber volume) — 120 L
Type of thermoelement — J type
Temperature control — PID digital control
Load switching element — SSR (Solid State Relay)
Thermostat setting increments — 1 °C steps
Thermostat working accuracy — ± 1 °C
Thermometer display increments — 1 °C steps
Chamber temperature accuracy — ± 2 °C
Postpone / Process time — 1 min – 99 hours 59 min
Timing begins — When preset temperature is reached
Safety measure — Safety thermostat with liquid expansion (50–300 °C)
Casing material — Sheet steel with stoved enamel paint
Chamber material — Anodized aluminum
Insulation material — Rock wool
Shelf — 2 perforated anodized aluminum shelves
Fuse — 10 A
Power rating — 1500 W
Power supply — AC 190–240 V / 50–60 Hz
Chamber dimensions (w x h x d) — 50 x 60 x 40 cm
Overall dimensions (w x h x d) — 79 x 79 x 53 cm
Net weight — 53 kg
Gross weight — 60 kg

Technical specifications

• Working temperature range: Ambient temperature +5 °C to 250 °C
• Capacity (Chamber volume): 120 L
• Type of thermoelement: J type
• Temperature control: PID digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1 °C steps
• Thermostat working accuracy: ± 1 °C
• Thermometer display increments: 1 °C steps
• Chamber temperature accuracy: ± 2 °C
• Postpone / Process time: 1 min – 99 hours 59 min
• Timing begins: When preset temperature is reached
• Safety measure: Safety thermostat with liquid expansion (50–300 °C)
• Casing material: Sheet steel with stoved enamel paint
• Chamber material: Anodized aluminum
• Insulation material: Rock wool
• Shelf: 2 perforated anodized aluminum shelves
• Fuse: 10 A
• Power rating: 1500 W
• Power supply: AC 190–240 V / 50–60 Hz
• Chamber dimensions (w x h x d): 50 x 60 x 40 cm
• Overall dimensions (w x h x d): 79 x 79 x 53 cm
• Net weight: 53 kg
• Gross weight: 60 kg
