Medical sterilizer M 5040 P

dentallaboratoryfor sterilization services

Overview

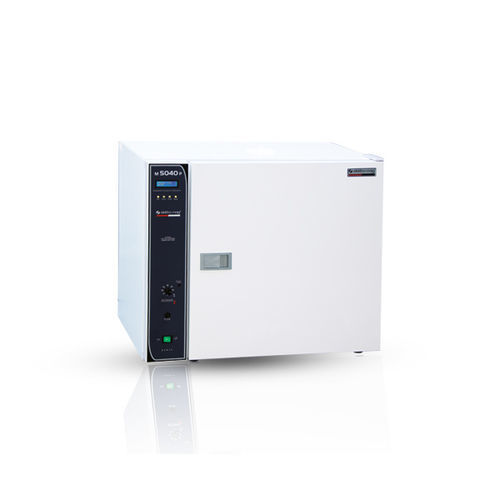

Elektro-mag M 5040 P hot air sterilizer is a dry-heat sterilization unit with a 100 L anodized aluminium chamber, PID digital temperature control and SSR load switching. Operating range: ambient +5°C to 250°C. The unit includes a J-type thermoelement, liquid-expansion safety thermostat (50-300°C) and rock wool insulation for thermal retention. Designed for repeated use in laboratory, medical and pharmaceutical environments.

Applications
Suitable for sterilization of heat-resistant instruments, glassware, metal tools and materials that require dry heat. Typical environments: clinical laboratories, research facilities, pharmaceutical production and sterilization departments requiring high-temperature dry-heat cycles and large internal volume.

How the hot air sterilizer ensures effective sterilization
Precise PID control and uniform heat distribution in the anodized aluminium chamber provide stable, moisture-free conditions that inactivate microorganisms. Adjustable process time (1 min–99 h 59 min) and ±1–2°C accuracy ensure repeatable cycles for validated procedures.

Advantages
Aluminium chamber offers good thermal conductivity and corrosion resistance. PID digital control and SSR switching deliver accurate, low-maintenance temperature management. Compact overall dimensions with 2 perforated anodized aluminium shelves facilitate loading of instruments and optimize air circulation.

Technical specification

• Working Temperature Range — Ambient temperature +5°C to 250°C
• Capacity (Chamber Volume) — 100 liters
• Type of Thermoelement — J type
• Temperature Control — PID Digital Control
• Load Switching Element — SSR (Solid State Relay)
• Thermostat Setting Increments — in 1°C steps
• Thermostat Working Accuracy — ±1°C
• Thermometer Display Increments — in 1°C steps
• Chamber Temperature Accuracy — ±2°C
• Postpone/Process Time — 1 min – 99 hours 59 min
• Safety Measure — Safety thermostat with liquid expansion (50-300°C)
• Casing Material — Sheet steel finished in stoved enamel paint
• Chamber Material — Anodized aluminum
• Insulation Material — Rock wool
• Shelf — 2 perforated anodized aluminum
• Power Rating — 1500W
• Fuse — 10 Amps
• Power Supply — AC 190-240V / 50-60 Hz
• Chamber Dimensions (w x d x h) — 50 x 40 x 50 cm
• Overall Dimensions (w x d x h) — 79 x 53 x 69 cm
• Net Weight — 51 kg
• Gross Weight — 57 kg
