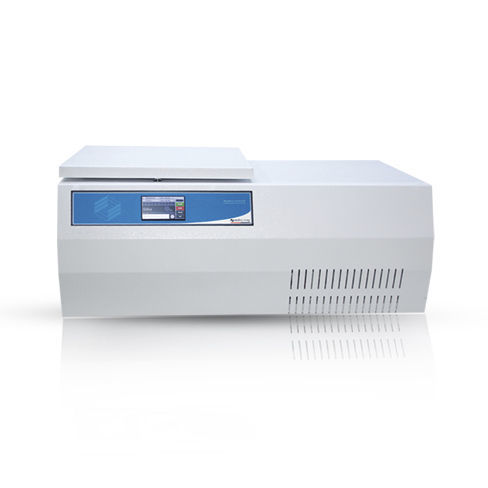

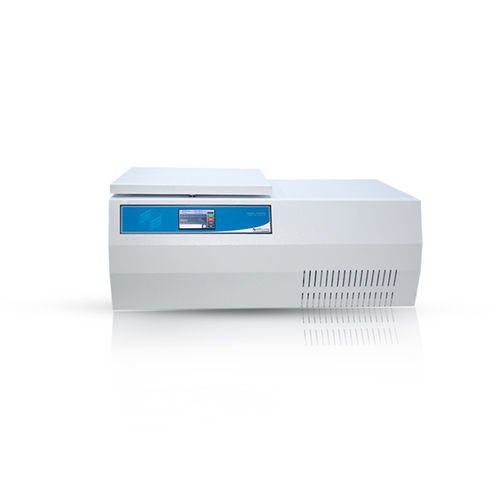

Laboratory centrifuge M 2815 PR

clinicalfor the pharmaceutical industryfor molecular biology

Overview
The M 2815 PR refrigerated centrifuge is engineered for clinical, pharmaceutical and research laboratories requiring temperature-controlled, high-precision separations. It features a 28 × 15 ml swing-out rotor and supports optional rotors including 4 × 50 ml swing-out and a fixed-angle vertical rotor for 24 × 1.5/2 ml tubes, enabling speeds up to 14,000 rpm for small tubes. Temperature control from -9°C to +40°C preserves sample integrity for DNA/RNA extraction, plasma separation and cell culture workflows. The PID microprocessor and 4.3" TFT touchscreen provide precise control of speed, temperature and runtime.

Design & Safety Features
Compact, serviceable design with emphasis on operator safety and reliable performance. Key safety features include automatic lid locking and imbalance detection. The energy-efficient brushless motor delivers sustained performance, while the centrifuge achieves high RCF values (up to 18,625×g) for robust separation of biological samples.

Main technical table
Model: M 2815 PR
Capacity: 28 × 15 ml (swing-out rotor)
Optional rotors: 4 × 50 ml (swing-out) / 24 × 1.5/2 ml (fixed-angle vertical 35°)
Max. speed: 28 × 15 ml – 4,500 rpm; 4 × 50 ml – 4,500 rpm; 24 × 1.5/2 ml – 14,000 rpm
Max. RCF: 28 × 15 ml – 3,622 ×g; 4 × 50 ml – 3,622 ×g; 24 × 1.5/2 ml – 18,625 ×g
Temperature range: -9°C to +40°C
Control unit: PID microprocessor with 4.3" TFT touchscreen
Speed setting: 500–4,500 rpm (increment 10 rpm)
Power rating: 950 W
Power supply: AC 190–240 V / 50–60 Hz

Applications

• DNA/RNA extraction
• Plasma separation
• Cell culture processing
• Clinical, pharmaceutical and research laboratory workflows

Technical specifications

• Model: M 2815 PR
• Swing-out rotor capacity: 28 × 15 ml
• Optional swing-out rotor: 4 × 50 ml
• Optional fixed-angle rotor: 24 × 1.5/2 ml (vertical 35°)
• Maximum speed for small tubes: up to 14,000 rpm
• Maximum RCF: up to 18,625 ×g
• Temperature control range: -9°C to +40°C
• Control: PID microprocessor with 4.3" TFT touchscreen
• Speed setting range: 500–4,500 rpm (increment 10 rpm)
• Power rating: 950 W
• Power supply: AC 190–240 V / 50–60 Hz
• Safety: automatic lid locking and imbalance detection
• Motor: energy-efficient brushless motor
