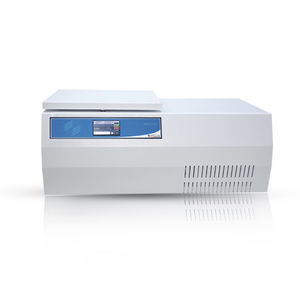

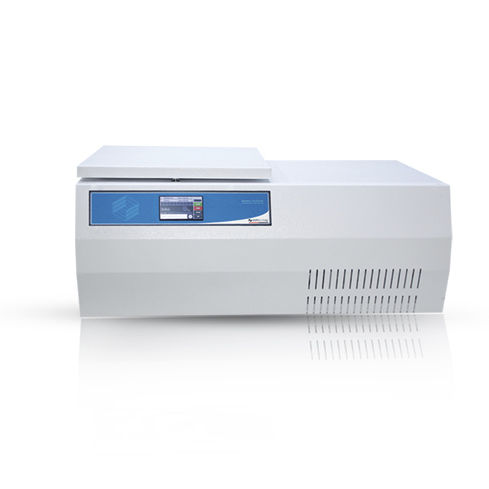

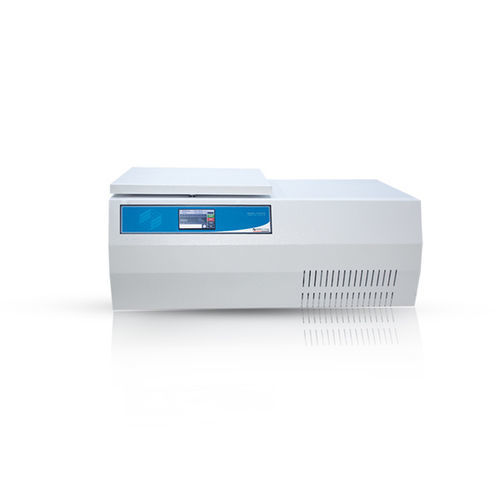

Laboratory centrifuge M 4815 PR

for biologyclinicalfor the pharmaceutical industry

Overview
The M 4815 PR refrigerated centrifuge is a high-capacity laboratory centrifuge engineered for temperature-sensitive sample processing. It integrates a full swing-out rotor for uniform separation, a brushless motor for continuous operation, and a PID microprocessor with a 4.3" TFT touchscreen for accurate parameter control and repeatable results.

Applications
Suitable for clinical diagnostics, pharmaceutical R&D and biological laboratories for workflows such as DNA/RNA extraction, blood processing, cell culture preparation and other procedures requiring precise temperature control and consistent separation.

Table
Capacity: 48 x 10 ml
Optional Rotors: 4 x 50 ml; 4 x 100 ml
Rotor Type: Full swing-out
Temperature Range: -9 °C to +40 °C
Control Unit: PID microprocessor with 4.3" TFT touchscreen
Speed Setting: 500–4500 rpm
Speed Increment: 10 rpm
Max. RCF: 3602 x g
Power Rating: 950 W
Power Supply: AC 190–240 V / 50–60 Hz

Key features

• Full swing-out rotor to ensure uniform sedimentation and reduce cross-contamination risk
• Refrigeration with precise temperature control from -9 °C to +40 °C for sensitive samples
• PID microprocessor and 4.3" TFT touchscreen for intuitive, repeatable program settings
• Brushless motor designed for long service intervals and stable performance
• Wide speed range (500–4500 rpm) with fine 10 rpm increments for accurate tuning
• Maximum RCF up to 3602 x g suitable for a broad range of laboratory separations
• Safety systems including automatic lid locking, imbalance detection and overheat protection
• Efficient 950 W drive for sustained high-speed operation

Usage environments
Hospitals, clinical laboratories, pharmaceutical and biotechnology research facilities where controlled temperature and reliable sample separation are essential.

Technical specifications

• Model: M 4815 PR
• Capacity: 48 x 10 ml
• Optional rotors: 4 x 50 ml; 4 x 100 ml
• Rotor type: Full swing-out
• Temperature range: -9 °C to +40 °C
• Control unit: PID microprocessor with 4.3" TFT touchscreen
• Speed range: 500–4500 rpm
• Speed increment: 10 rpm
• Maximum RCF: 3602 x g
• Power rating: 950 W
• Power supply: AC 190–240 V, 50–60 Hz
• Safety: Automatic lid locking, imbalance detection, overheat protection
• Motor: Brushless motor
