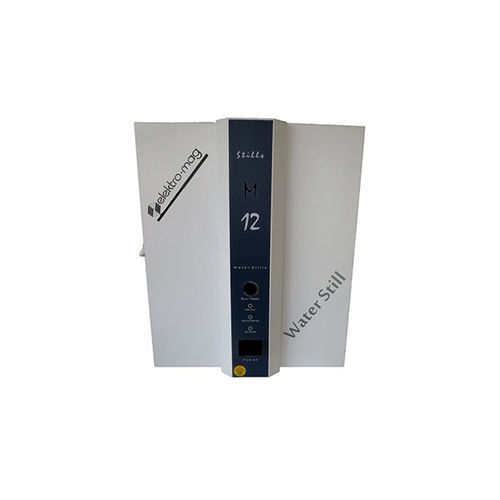

Laboratory water distiller M12

benchtop

Product overview
The M12 water still provides a continuous distillation output of 12 liters per hour for laboratory use. The unit has a stainless steel casing and stainless steel tube heaters. Safety systems include water level control, a magnetic switch and a leakage current fuse. An external water filter is supplied. Dimensions (W x H x D): 72 x 66 x 34 cm. Gross weight: 35 kg.

Model comparison

• Distillation capacity — M4: 4 L/h; M8: 8 L/h; M12: 12 L/h
• Cooling water usage — M4: 40 L/h; M8: 80 L/h; M12: 120 L/h
• Output water temperature — 50°C for all models
• Heater type — stainless steel tube resistance for all models
• Safety features — water level control, magnetic switch, leakage current fuse
• Casing material — stainless steel
• Internal tank capacity — M4: 8 L; M8: 16 L; M12: 24 L
• Power rating — M4: 3,000 W; M8: 3×2 kW; M12: 3×2.4 kW
• Dimensions (W x H x D) — M4: 65 x 52 x 25 cm; M8: 72 x 66 x 34 cm; M12: 72 x 66 x 34 cm
• Net weight — M4: 18 kg; M8: 32 kg; M12: 32 kg

Frequently Asked Questions

• What is the difference between M4, M8 and M12 water stills?
  The main differences are distillation capacity, cooling water usage, internal tank capacity and power rating; values increase from M4 to M12.
• Are these water stills energy-efficient?
  All models use stainless steel tube resistance heaters, which provide efficient heating; actual energy consumption depends on operating conditions.
• What safety features are included?
  Each model includes water level control, a magnetic switch and a leakage current fuse to protect the unit during operation.
• Is the water output temperature adjustable?
  The specified output temperature for these models is 50°C.
• Do these water stills require regular maintenance?
  Yes. Regular cleaning of the stainless steel chamber and periodic replacement of the external water filter are recommended.

Technical specifications

• Model: M12
• Distillation capacity: 12 liters/hour
• Output water temperature: 50°C
• Casing material: stainless steel
• Heater type: stainless steel tube resistance
• Safety: water level control, magnetic switch, leakage current fuse
• External water filter: included (requires periodic replacement)
• Internal tank capacity: 24 liters
• Cooling water usage: 120 liters/hour
• Power rating: 3×2.4 kW
• Dimensions (W x H x D): 72 x 66 x 34 cm
• Gross weight: 35 kg
• Net weight: 32 kg
