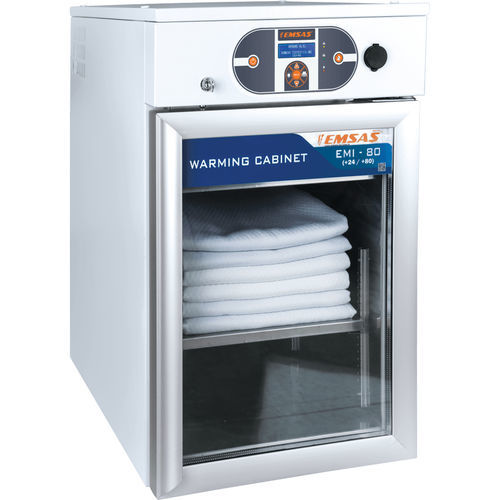

Healthcare facility medical warmer EMI 80

for liquidslaboratoryfor fluids

Overview
Developed by EMSAŞ, the EMI Series serum warming cabinets provide controlled, homogeneous warming of serum and medical fluids across a wide operating range. Designed for clinical and laboratory use, the cabinets combine precise microprocessor regulation, data logging and safety features to support patient-care workflows.

Applications and Model Range

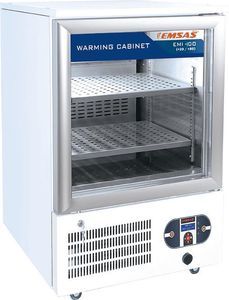

The EMI range (EMI 80, EMI 100, EMI 150, EMIX 250, EMI 350, EMI 500) is suited to hospitals, laboratories, clinics and medical centers. Models differ by internal volume and configuration to match storage and warming needs.

Key Features

• Operating range: +20°C to +80°C with precise temperature control for serum and medical fluids.
• Microprocessor digital control panel with 0.1°C resolution, password protection and onboard data storage (30 days).
• USB output for data export (records transferable to PC in Excel format) and RS485/RS232 connectivity options.
• Homogeneous heat distribution via reinforced fan system and filtered air circulation to reduce contamination risk.
• Interior LED lighting and stainless steel Cr‑Ni 304 inner body for hygiene and easy cleaning.
• Double‑glazed lockable door; visual and audible alarm for temperature deviations, door open, power outage/low voltage.
• Built‑in battery/accumulator backup to maintain panel (and thermal printer if fitted) operation during power outages (panel backup ~24–48 hours depending on configuration).
• Mobility with two braked and two fixed wheels for safe repositioning.
• 2‑year product warranty.

Optional / Additional Equipment

• Thermal printer for on‑site numerical printouts of recorded data.
• 5.5" touch screen interface (optional) for enhanced local control.
• Chrome shelves and alternative internal fittings.

Technical specifications
Operation range: +20°C / +80°C
Factory adjusted example temperature: +50°C
External dimensions (W×D×H): 452 × 661 × 765 mm
Internal volume: 70 L
Insulation: CNC‑free polyurethane, 4 mm thickness
Inner body: Stainless Steel Cr‑Ni 304
Outer body: Electrostatic powder‑coated galvanized (option: Stainless 304 Cr‑Ni)
Heating/circulation: Fan‑blown, filtered air circulation
Interior lighting: LED
Door: Double‑glazed, lockable
Alarm: Visual and audible (temperature limits, door open, power outage/low voltage)
Control: Microprocessor digital panel, 0.1°C accuracy, password protection, data memory (30 days), USB export (records preservable externally)
Connectivity: USB; RS485/RS232 optional
Mobility: 2 wheels with stops + 2 fixed wheels
Backup power: Built‑in battery/accumulator (panel/printer operation ~24–48 h depending on system)
Chrome shelves: 1 pc (standard) — additional optional shelves available
Warranty: 2 years
