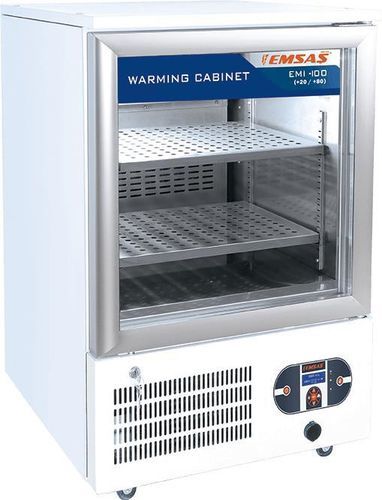

Warming cabinet EMI 100

for fluidsfor blanketsfor healthcare facility

Overview
Developed by EMSAŞ, the EMI 100 is a serum warming cabinet designed for controlled heating of serums and medical fluids. It provides precise temperature regulation and homogeneous fan-assisted distribution for clinical environments, with data logging and alarm functions to support safety and traceability.

Application & Models
Suitable for hospitals, laboratories, clinics and medical centres. Part of the EMI series available in multiple internal volumes (EMI 80, EMI 100, EMI 150, EMIX 250, EMI 350, EMI 500) to match facility needs. User-friendly interface and configurable alarms make it suitable for routine clinical workflows.

Main Features

• Operational range: typically used for warming between +30°C and +80°C; electronic control supports +20°C to +80°C.
• Microprocessor digital control with 0.1°C thermostat resolution and password protection.
• Homogeneous heat distribution via reinforced fan system (fan-blown heating/cooling).
• Filtered air circulation to reduce external contamination; interior LED lighting for hygiene and low energy use.
• Double-glazed, lockable door; overtemperature protection (electronic to 80°C, mechanical to 90°C).
• Visual and audible alarms for temperature limits, door open, power loss or low voltage.
• USB port for data export; temperature records exportable in Excel format. Optional RS485/RS232 connectivity and thermal printer.
• Integrated rechargeable battery to keep the control panel (and optional printer) operational for 24–48 hours during mains failure.
• Mobile on castors (2 with brakes + 2 fixed) for easy relocation.
• Exterior: electrostatic powder-coated galvanized sheet (option: stainless steel 304 Cr-Ni). Interior: stainless steel Cr-Ni 304. Adjustable chrome-plated wire shelves.
• Optional accessories: chrome shelves, thermal printer, 5.5" touchscreen.

Notes on Operation
Supply: 195–230 V / 50 Hz. Thermostat and sensor settings can be calibrated to external sensors via the electronic control board. In double-cabinet versions, each cabin temperature is independently adjustable.

Technical Specifications

• Operation range: +20°C / +80°C
• Example set temperature: +50°C
• External dimensions (W×D×H): 600 × 695 × 910 mm
• Internal volume: 110 L
• Insulation thickness (polyurethane): 55 mm
• Gross weight: 85 kg
• Interior lighting: LED
• Door lock: available
• Alarm: visual and audible
• Inner body: Stainless Steel Cr-Ni 304
• Outer body: Electrostatic powder-coated galvanized (option: Stainless 304 Cr-Ni)
• Heating/cooling system: fan-blown
• Insulation: CFC-free polyurethane
• Number of chrome shelves: 2 pcs
• Computer connection: USB (data export to Excel)
• Castors: 2 with brakes + 2 fixed
• Touchscreen: 5.5" optional
• Thermostat resolution: 0.1 °C
• Panel autonomy on battery: 24–48 hours (depending on configuration)
• Warranty: 2 years (manufacturer statement)
