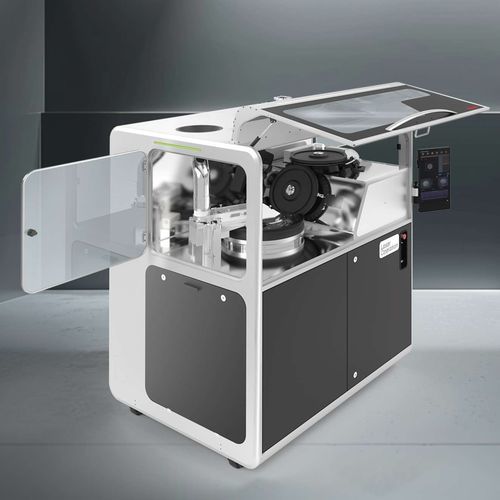

Laser marker for the pharmaceutical industry PLANET DLPI-T

for tabletshigh-speedautomatic

Overview
One system for dual-side laser marking and precision inspection of pharmaceutical tablets. PLANET DLPI-T applies UV laser-etched IDs on both faces and inspects each tablet immediately after marking, enabling integrated traceability and simultaneous print & inspect processing.

Advantages

• Dual-side laser marking: UV laser marking on both tablet faces to enable identification on front and back.
• Print & Inspect in one step: simultaneous UV laser marking and inspection to reduce process time and handling.
• Zero blind spot inspection: complete surface coverage to ensure no uninspected areas.

Inspection & Imaging

• Multi-camera system: 10 × 2D cameras plus 2 × 3D cameras for comprehensive imaging and geometry capture.
• Real-time precision inspection immediately after marking to verify print quality, code readability and positional accuracy.

Defect Detection

• Detects defects such as cracks, incomplete or poor printing, color inconsistencies and other visual anomalies relevant to pharmaceutical quality control.

Feeding & Handling

• Precision feeding: integrated vibrating screw feeder for reliable separation and transfer of individual tablets.
• Guided stability: includes 25 pocket guides and 20 types of rotation guides to support and position a wide range of tablet shapes.
• Three-step safety/triple-checking system designed to prevent mixing and ensure accurate sorting.

User & Learning Features

• User-friendly interface with simplified recipe settings and accessible cleaning to support production uptime and operator tasks.
• Auto-study function: two-step automatic learning that records tablet features and positional data for repeatable handling and quick changeovers.

Video

• Embedded product video demonstrating system operation, marking results and inspection workflow.

Shape / Size / Speed
Shape | Size | Speed
Round Tablet (Diameter) | 4.6 ~ 5.3 mm | 425,000 pcs/h
Round Tablet (Diameter) | 5.3 ~ 6.1 mm | 370,000 pcs/h
Round Tablet (Diameter) | 6.1 ~ 7.1 mm | 320,000 pcs/h
Round Tablet (Diameter) | 7.1 ~ 8.2 mm | 280,000 pcs/h
Round Tablet (Diameter) | 8.2 ~ 9.3 mm | 240,000 pcs/h
Round Tablet (Diameter) | 9.3 ~ 10.7 mm | 210,000 pcs/h
Round Tablet (Diameter) | 10.7 ~ 12.4 mm | 180,000 pcs/h
Round Tablet (Diameter) | 12.4 ~ 14 mm | 143,000 pcs/h
Oval / Oblong Tablet (Length) | 10 mm | 230,000 pcs/h
Oval / Oblong Tablet (Length) | 12 mm | 198,000 pcs/h
Oval / Oblong Tablet (Length) | 14 mm | 176,000 pcs/h
Oval / Oblong Tablet (Length) | 16 mm | 154,000 pcs/h
Oval / Oblong Tablet (Length) | 18 mm | 132,000 pcs/h
Oval / Oblong Tablet (Length) | 20 mm | 110,000 pcs/h
Oval / Oblong Tablet (Length) | 22 mm | 99,000 pcs/h

Specifications / Technical data

• Commercial name: PLANET DLPI-T
• Laser type: UV laser capable of marking both tablet faces (dual-side UV laser marking).
• Inspection cameras: 10 × 2D cameras + 2 × 3D cameras for full-surface inspection (zero blind spot).
• Operation: simultaneous marking and inspection in a single pass to increase throughput.
• Feeding: precision vibrating screw feeder for reliable tablet separation and transfer.
• Handling aids: 25 pocket guides and 20 rotation guide types to accommodate various tablet shapes.
• Defect detection: cracks, printing defects, color inconsistencies and similar visual defects relevant to pharmaceutical inspection.
• Safety: engineered three-step safety/triple-checking system to avoid cross-mixing and ensure sorting accuracy.
• Learning: two-step auto study that records tablet features and positional data for repeatable handling.
• Performance examples: speeds depend on tablet shape and size (see Shape / Size / Speed table above).
• Additional resources: machine drawings and dimensional data are provided for the product.
