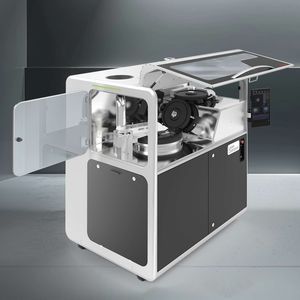

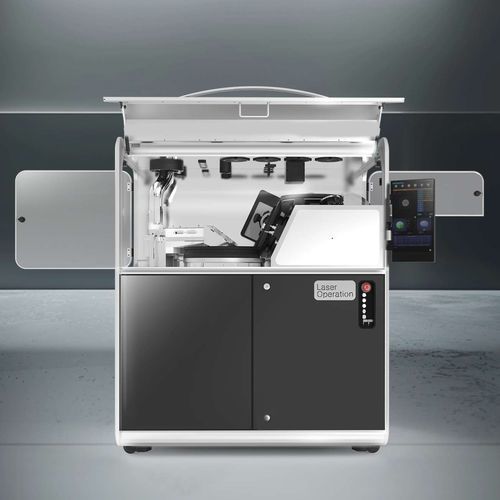

Laser marker for the pharmaceutical industry PLANET DLPI-TC

for capsulesfor tabletsautomated

Overview
Dual‑side UV laser marking and integrated vision inspection system for tablets and capsules. The PLANET DLPI‑TC prints and inspects both tablets and capsules in a single automated process to ensure traceability, readability and production accuracy.

Advantages

• First‑in‑class dual‑side UV laser marking for tablets
• Print & Inspect in One Step: simultaneous UV laser marking and vision inspection to reduce cycle times
• Quick changeover: minimal part changes for rapid setup between products
• High tooling flexibility: one tooling set adapts to multiple shapes with precise alignment
• Precision feeding: vibrating screw feeder ensures reliable separation and transfer
• Stable positioning: 25 pocket guides and 20 rotation guide types for consistent product handling
• Zero blind spot: 10 × 2D cameras + 2 × 3D cameras deliver complete tablet inspection
• Inside & out capsule inspection: 14 × 2D plus infrared cameras evaluate shell and internal content
• Triple checking: three‑step safety system prevents mix‑ups and guarantees correct sorting
• User‑oriented operation: simplified recipe management and easy cleaning for high uptime
• Smart learning: machine‑learning stores each product's optical signature for improved inspection

Features

• Dual‑side UV laser marking combined with synchronized vision inspection
• Simultaneous marking and inspection to streamline pharmaceutical production lines
• High throughput: capacity varies by tablet/capsule size and shape (see table)
• Broad defect detection: cracks, poor printing, color variation, double units, printing errors, weight anomalies
• Multiple camera configuration (2D, 3D, infrared) tailored to product type

Speed / Size Table (examples)
Header: Type | Size | Speed
Tablet (Round, Diameter): 4.6 ~ 5.3mm | 425,000
Tablet (Round, Diameter): 5.3 ~ 6.1mm | 370,000
Tablet (Round, Diameter): 6.1 ~ 7.1mm | 320,000
Tablet (Round, Diameter): 7.1 ~ 8.2mm | 280,000
Tablet (Round, Diameter): 8.2 ~ 9.3mm | 240,000
Tablet (Round, Diameter): 9.3 ~ 10.7mm | 210,000
Tablet (Round, Diameter): 10.7 ~ 12.4mm | 180,000
Tablet (Round, Diameter): 12.4 ~ 14mm | 143,000
Tablet (Oval/Oblong, Length): 10mm | 230,000
Tablet (Oval/Oblong, Length): 12mm | 198,000
Tablet (Oval/Oblong, Length): 14mm | 176,000

Technical specifications

• Model: PLANET DLPI-TC
• Brand: ENCLONY
• Laser type: UV laser with dual‑side marking capability
• Tablet inspection cameras: 10 × 2D + 2 × 3D (no blind spot)
• Capsule inspection cameras: 14 × 2D + infrared cameras for internal content inspection
• Feeding: precision vibrating screw feeder
• Guides: 25 pocket guides and 20 rotation guide types
• Inspection modes: simultaneous marking & vision inspection; inside & outside capsule inspection
• Detectable defects: cracks, poor printing, color inconsistency, double units, printing errors, weight issues
• Changeover: quick change with minimal part replacement
• Safety: triple‑checking three‑step system to avoid mix‑ups
• AI / learning: machine‑learning stores optical characteristics for each product
• Throughput: depends on tablet/capsule size and shape (see speed table)
