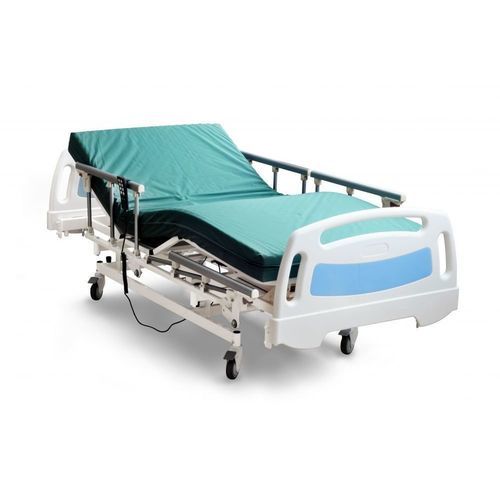

Home care bed ENB-301B

nursing homemedicalhospital

Overview
The ENB-301B is an electric hospital bed designed for clinical and long-term care environments. It provides motorised height adjustment, independently adjustable backrest and knee sections, and integrated features for patient safety and caregiver ergonomics. The bed is suitable for hospitals, nursing homes and assisted living facilities.

Functional highlights

• Back support facilitating pelvic elevation and patient positioning
• Waist section aligned to body axis for improved posture and transfer
• Knee support to compensate height differences and enhance comfort

Design & ergonomic features

• Bed surface height 43 cm above floor to match seated posture and reduce transfer risk
• Wide Hi‑Lo range (33–72 cm without mattress) to support nursing tasks and safe handling

Applications

• Hospitals
• Nursing homes
• Assisted living facilities
• Clinics and outpatient care

Measurements & test evaluation

• Threshold: loads 180 kg to traverse a 4 cm obstacle
• Head section load test: 60 kg
• Guardrail stability: tested with 50k tension
• Waterproof rating: medical grade IP54

Specifications

• Frame & surface: steel with powder coating
• External dimensions: 210 cm (L) x 95 cm (W)
• Electric Hi‑Lo control: 33 cm ~ 72 cm (without mattress)
• Movable head and foot boards
• Backrest angle: 0 ~ 75°
• Knee‑break angle: 0 ~ 30°
• Safe working load / lifting capacity: 180 kg
• Ti‑Motion motors with handset control
• Swivel castors with brake

Options

• Bed base: steel tube / ABS board / backlit board / slatted rack
• Mattress: TPE / foam
• Head & foot boards: MDF / ABS / wood
• Side rails: 2‑section aluminum rail / full‑length side rail
• CPR release handle
• Central lock system (full with brake bar)
• I.V. socket
• Urine bag holder
• Battery backup system (battery not included)

Technical data

• Model: ENB-301B
• External dimension: 210 cm (L) x 95 cm (W)
• Electric Hi‑Lo range: 33 cm ~ 72 cm (without mattress)
• Backrest angle: 0 ~ 75°
• Knee‑break angle: 0 ~ 30°
• Safe working load / lifting capacity: 180 kg
• Frame & surface: steel with powder coating
• Motors: Ti‑Motion motors with handset control
• Castors: swivel castors with brake
• Waterproof rating: IP54 (medical grade)
