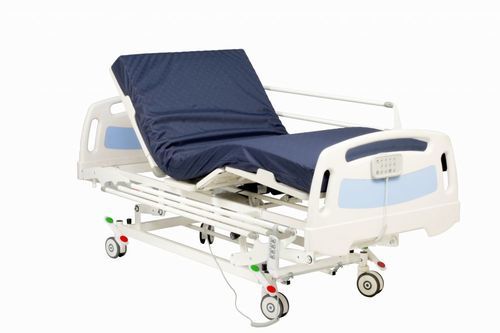

Home care bed ENB-301E

nursing homehospitalelectric

Overview
The ENB-301E is an electric hospital bed designed for hospitals, nursing homes, assisted living facilities, outpatient clinics and in‑home care. It integrates adjustable overall height, adjustable head and foot sections, configurable side rails and electronic controls to support patient handling and caregiver ergonomics.

Key structural features (table items)

• Back support enabling effective pelvic elevation
• Waist platform for body alignment with the bed axis
• Knee support to accommodate height differentials

Additional functional features (table items)

• Bed surface height: 43 cm from floor matching seated human posture to improve safe transfers
• Electric Hi‑Lo range: 33 cm – 72 cm ±3% (without mattress)
• Ti‑Motion motors with handset control for head, foot and Hi‑Lo adjustment
• Swivel castors 5" with brake and central lock system (full with brake bar)
• CPR quick‑release handle, I.V. socket, urine bag holder and administration control panel
• Battery backup system (battery not included); parts designed to allow upgrades (refer to optional accessories)
• Bed base options: Steel tube / ABS board / Backlit board / Slatted rack; Side rail options: 2‑section aluminum rail / full‑length side rail
• Mattress materials available: TPE / foam; Head & foot board materials: MDF / ABS / wood

Be Applicable

• Nursing homes
• Assisted living facilities
• Clinic

Actual Measurement Evaluation / Tests (table items)
Threshold: Crossing a 4 cm obstacle under 180 kg load

Load: Head section loading test 60 kg

Stable: Guardrail tested with 50 kg tension

Waterproof: Medical grade rating IP54

Technical specifications

• External size: 210 cm (L) x 97 cm (W)
• Electric Hi‑Lo control: 33 cm ~ 72 cm ±3% (without mattress)
• Packing size: 206 cm (L) x 100 cm (W) x 35 cm (H)
• Mattress: 4" (≈10 cm) thickness
• Swivel castors: 5" with brake
• Motors & control: Ti‑Motion motors with handset control
• Bed base options: Steel Tube / ABS Board / Backlit Board / Slatted Rack
• Mattress materials: TPE / Foam
• Head & foot board materials: MDF / ABS / Wood
• Side rail options: 2‑section aluminum rail / full length side rail
• CPR release handle; Central Lock System (full with brake bar)
• I.V. socket; Urine bag holder; Administration control panel
• Battery backup system (battery not included); Parts allow upgrade (refer to optional accessories)
• Performance tests: threshold crossing 180 kg over 4 cm; head section load 60 kg; guardrail 50 kg tension; waterproof rating IP54
