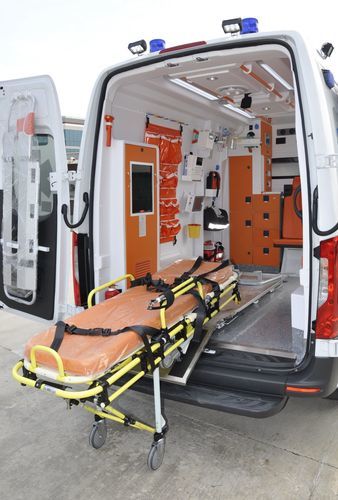

Van ambulance

4-stretcherwith oxygen therapy

Product overview
Europan Type ambulance conversions are manufactured with a high-standard ABS mould system and comply with the European ambulance standard EN 1789. Right, left and ceiling coverings are produced as single-piece ABS mouldings with rounded edges to provide a hygienic, easy-to-clean interior suited to emergency medical use.

Features

• Long roof lightbar at the front and a short ceiling lightbar at the rear.
• Side warning lamps mounted upper-side of the body: 3 on the right and 3 on the left.
• Rear-area projectors for back-area illumination.
• Lightbar and siren controls operable from the driver’s seat.
• Flooring in antibacterial, non-slip, easy-to-clean material.
• Support plates under wall coverings for secure fixation of cabinets and medical equipment; integrated sound and thermal insulation.
• Single-piece ABS cover with oxygen cylinder chamber, oxygen and suction systems, and medical equipment cabinet on the left side.
• Single-piece ABS covering on the right side with doctor’s seat, chair-stretcher compartment and spine board connection capability.
• Rounded-corner moulded system for improved hygiene and safety.
• Front cabin storage with drawers, command panel cabinet and doctor’s seat.
• Patient cabinet equipped with handles and I.V. holder accessible to staff.
• Patient cabin lighting: 4 LED long lamps and 2 LED spot lamps.
• Electrical system compliant with European standards; includes auxiliary battery, digital control panel, inverter and rectifier.
• Internal communication system between patient cabin and driver area.
• Customer-specified reflective inscriptions, stripes and logos available.
• External 220V input via extension cable.

Technical specifications

• Compliance: European ambulance standard EN 1789.
• Construction: High-standard ABS moulding system; single-piece moulds for right, left and ceiling coverings.
• Interior: Rounded-edge ABS coverings; support plates for equipment fixation; sound and thermal insulation beneath wall coverings.
• Lighting: Front long roof lightbar, rear short ceiling lightbar, side warning lamps (3 per side), rear projectors; patient cabin: 4 LED long lamps + 2 LED spot lamps.
• Electrical: Auxiliary battery, digital control panel, inverter, rectifier, external 220V input via extension cable.
• Medical fittings: Oxygen cylinder chamber, oxygen and suction systems, medical equipment cabinet, I.V. holder, storage drawers, doctor’s seat, chair-stretcher compartment, spine board connection capability.
• Flooring: Antibacterial, non-slip, easy-to-clean material.
• Safety & identification: Customer-specified reflective inscriptions, stripes and logos.
• Controls & communication: Lightbar and siren control from driver’s seat; internal communication between patient cabin and driver area.
