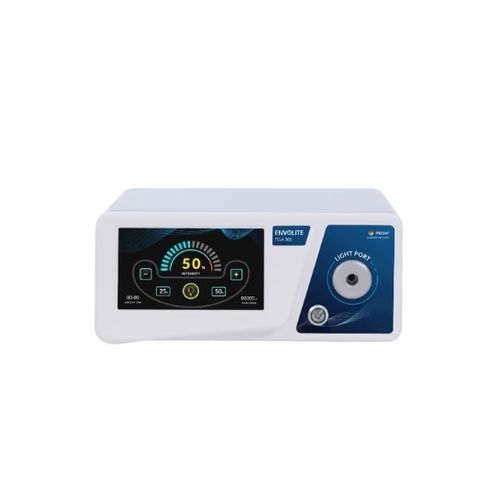

Video endoscope light source SCLA

for endoscopesLEDcontinuous

Overview
SCLA is the white-light tier of the Envolite family. It provides stable, uniform white illumination through a single optical architecture shared across the Envolite platform. Powered by OptiCore-MX micro-optics, SCLA delivers 2800 lm with a 5700–6500 K correlated colour temperature, designed for routine endoscopic and minimally invasive procedures that require reliable fiber-delivered white light without additional spectral modes.

Key highlights

• 2800 lm white light output
• OptiCore-MX optical engine
• 7in capacitive touchscreen
• Cable detection interlock
• Whisper-quiet operation < 45 dB
• Total weight < 4.8 kg

Product specifications (table)
Primary capability: White light imaging
White light output: 2800 lm
White light CCT: 5700–6500 K
SpectraSure: -
OptiCore-MX platform: Included
Display: 7in capacitive touchscreen
Dimensions: 326 mm × 279 mm × 142 mm
Weight: < 4.8 kg
Noise Level: < 45 dB
Supply Voltage: 90V - 300V AC
LED Life: 50,000 h
Cable Detection Interlock: Included

Technical specifications

• Primary capability: White light imaging
• White light output: 2800 lm
• Correlated colour temperature (CCT): 5700–6500 K
• Optical engine: OptiCore-MX micro-optics (included)
• Display: 7in capacitive touchscreen
• Dimensions: 326 mm × 279 mm × 142 mm
• Weight: < 4.8 kg
• Noise level: < 45 dB (whisper-quiet)
• Supply voltage: 90V - 300V AC
• LED life: 50,000 h
• Cable detection interlock: Included
• SpectraSure: not applicable / -
