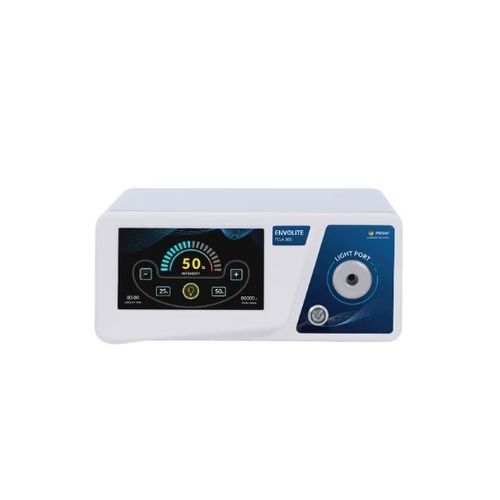

Endoscope light source TCLA

LEDtype of light

Product overview
White light with SpectraSure colour fidelity as standard. TCLA integrates the SpectraSure imaging suite with the OptiCore-MX platform to deliver consistent white-light output (2800 lm) while maintaining stable colour rendering across intensity ranges, ensuring tissue colour remains readable from scope-in to close.

Key highlights

• 2800 lm white light output
• SpectraSure included as standard
• OptiCore-MX optical engine
• 7" capacitive touchscreen
• Smart control memory with one-touch save and recall
• Supports ultra-lightweight fibre-optic cables

Specifications
Primary capability: White light imaging + SpectraSure™
White light output: 2800 lm
White light CCT: 5700-6500 K
SpectraSure: Included
OptiCore-MX platform: Included
Display: 7" capacitive touchscreen
Dimensions: 326 mm × 279 mm × 142 mm
Weight: < 4.8 kg
Noise Level: < 45 dB
Supply Voltage: 90V - 300V AC
LED Life: 50,000 h
Cable Detection Interlock: Included

Technical specifications

• Primary capability: White light imaging with SpectraSure colour fidelity
• White light output: 2800 lm
• White light correlated colour temperature (CCT): 5700-6500 K
• SpectraSure: Included as standard (balances LED channels for stable CRI through intensity changes)
• OptiCore-MX optical engine: Included
• Display: 7" capacitive touchscreen
• Smart control memory: One-touch save and recall
• Supports ultra-lightweight fibre-optic cables
• Dimensions: 326 mm × 279 mm × 142 mm
• Weight: < 4.8 kg
• Noise Level: < 45 dB
• Supply Voltage: 90V - 300V AC
• LED Life: 50,000 h
• Cable Detection Interlock: Included
