Veterinary endodontic file GEYSIR

rotarymanualfor root canal treatment

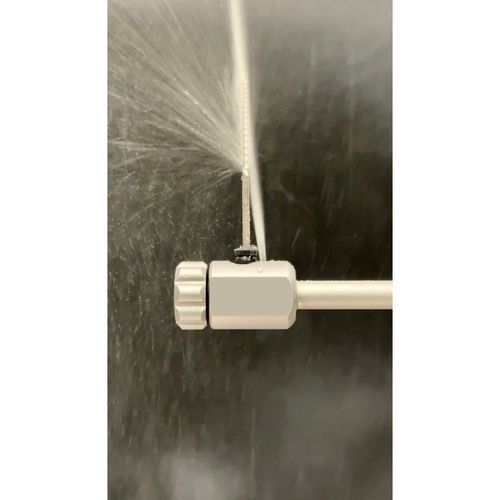

GEYSIR is the first manual endodontic file holder with an integrated flushing option, developed for large-animal (equine) dentistry. It secures manual endodontic files during procedures and allows controlled irrigation directly at the instrument to improve access in deep diastemata and infundibula.

Applications

• Removal of trapped food from deep diastemata
• Probing and inspection of occlusal defects
• Debridement of pulp cavities during endodontic treatment
• Extraction of vegetal material from carious infundibula

Compatibility & use

• Can be connected to Equus Jet V1 or Equus Jet Connect using the GEYSIR kit
• Also compatible with other systems via the Luer Lock connection
• Use of Equus foot pedals is recommended for operation
• Intended use: Equine dentistry — Veterinary use only

Includes

• One GEYSIR with fine-thread set screw
• One fabric storage pouch

Technical specifications

• Accepts manual endodontic files with handle diameters up to 4.5 mm
• Fine-thread set screw: no tools required for adjustment
• Precise flushing outlet directed to the file
• Connection: Equus Jet kit or Luer Lock
• Total length: 33 cm
• Material: 100% stainless steel
• Autoclavable
• Handmade in Germany
